Galvanized Steel Ppgi Trapezoidal Roofing 800mm Sheet Metal Roll Forming Machines

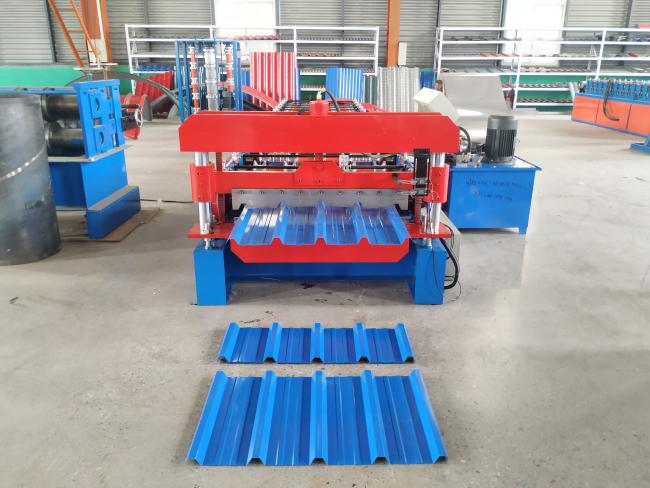

Gallvanized Steel PPGI Trapezoidal Metal Roofing Sheet Roll Forming Machine
Parameter of color steel tile forming machine :
| 1 | Model No. | High Speed Floor Deck Steel Roll Form Machine |
| 2 | Thickness | 0.3-0.8mm |
| 3 | Coli material | GI |
| 4 | The bearing capacity of manual decoiler | 6.5 tons |
| 5 | shaft material | 45#steel |
| 6 | Out diameter | Customized |
| 7 | numbers of forming steps | Customized |
| 8 | transmission | chain transmission |
| 9 | Forming speed | 8-12m/min |
| 10 | main motor power | 3kw |
| 11 | voltage | 380V50HZ Three-phase or as required |
| 12 | dimension | 7*1.3*1.3 |
| 13 | cutting | hydraulic cutting |
| 14 | blade material | Cr12 steel with quenched treated 60-62°c |
| 15 | control system | PLC(Delta) |
| 16 | length tolerance | ±1mm |
| 17 | spare parts |
1 easy demaged parts:conk 2pcs, fuse-link 4pcs 2 rubber mat: 1 pcs 3 bolt spanner: 1 pcs |
| 18 |
The whole line including: Manual decoiler, roll forming machine, hydraulic station, hydraulic cutter, PLC control system, run-out table. |
|
Fully automatic 840 press parameters:
Shape size: 5500 mm * 1300 mm * 1200 mm
Whole machine weight; 2T
Shaft: 70 mm in diameter
Molding wheel: material 45#
Driving mode: sprocket, chain
Motor: 3KW
Forming row number: 11 rows; Automatic computer fixed length cut-off system:
Pumping station motor: 3KW
Cutting die: Gr12
Molding speed: 8-10m/min
Compression thickness: 0.2-0.8mm
Compression width: 1000mm
840 tile press can produce various appearance roof panels according to production needs, and the yield is high. Products are widely used in various industrial plants, houses, warehouses and simple steel roofs, beautiful and generous, durable.
It can be customized if you need to modify the format.
Packing
packed with waterproof cloth and in container
Our service
· Sample are available and free.
·
· We will make delivery of the goods 15-30 days after get deposit.
·
· All our goods are with best price and reasonable price.
·
· We can make delivery by sea ,by air or express.
·
· Our main export is Tianjin.
