1. Usage And Introduction Of This Production Line
The complete shutter door roll forming machine , includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.

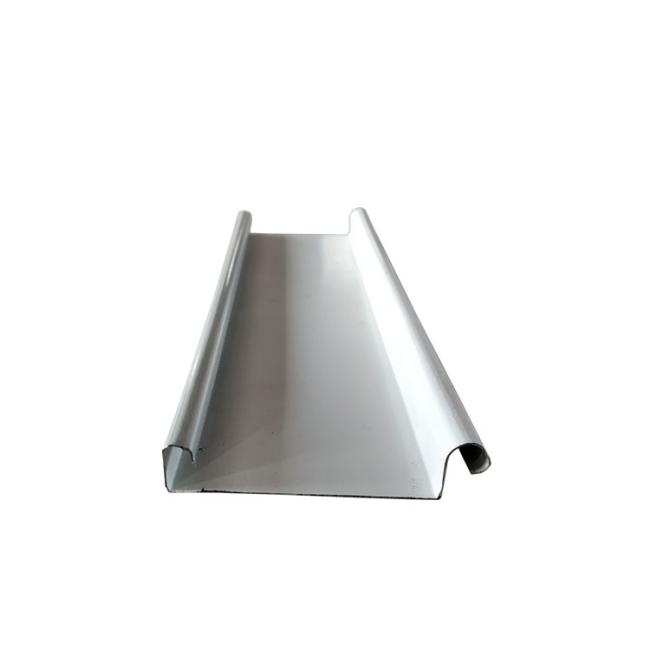

-The machine is used for produce shutter door slat.We can manufacture sizes as customers request.
2. Service and Terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while
before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the
cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary
100USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free
3. FAQ
Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3, About the after service, if the machine has problem out of guarantee?
A3, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.
4. Specifications of the shutter door forming machine
| Suitable Material | Material | Galvanized Sheet |
| Width | 121 mm | |
| Thickness | 0.7-0.8 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 12 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 8-12 m/min | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 4600mm*800mm*1500mm | |
| Electronic control system | PLC +Touch Screen | |
Standard Configuration:
| 3 tons Manual decoiler | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic pump system | 1 set |
| PLC control system | 1 set |
| Receiving Table | 1 set |
| Spare parts | 1 set |
5. Brief of our company
Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

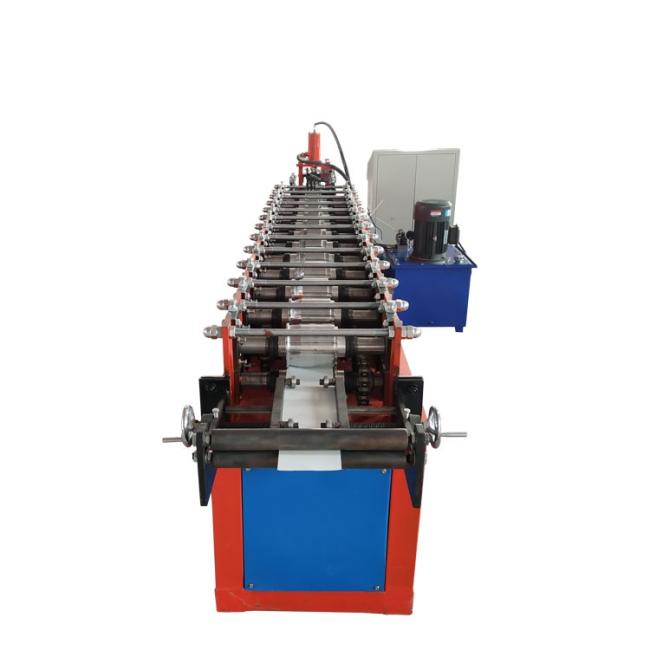

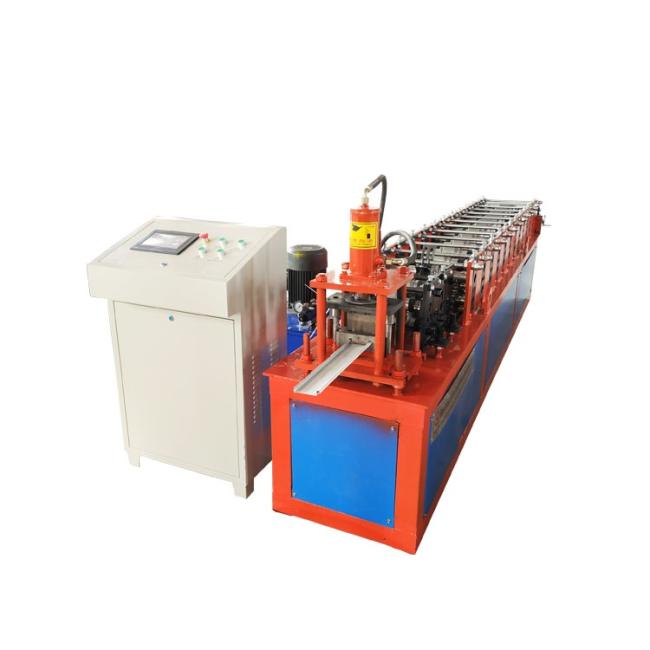

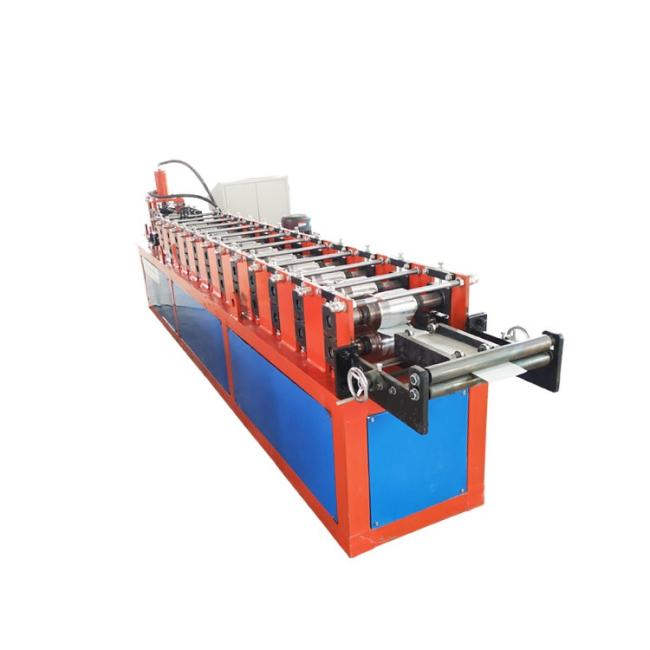

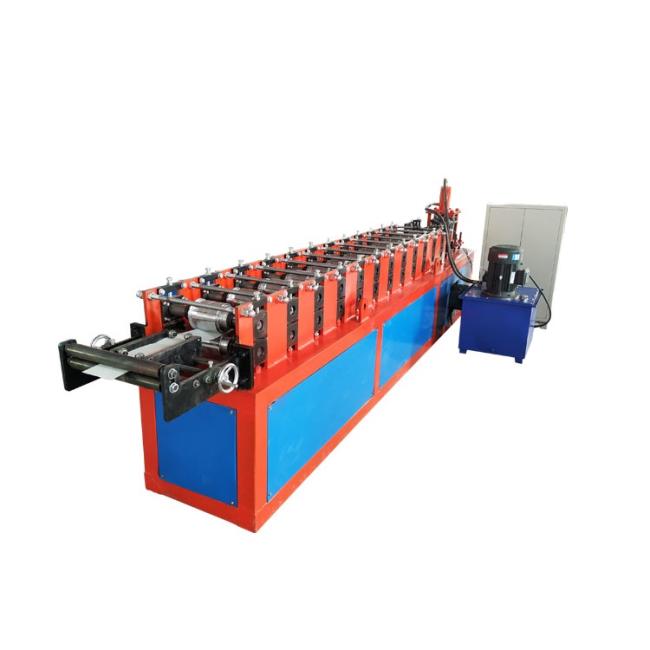

6. A few machine pictures for reference
