Steel Roofing 1000mm Sheet Metal Roll Forming Machines Plc Control

Price Negotiable
Price: 7500 - 9500 USD
MOQ: 1 set
Delivery Time: 45 working days
Brand: SHITONG
Product Description

1000mm steel roofing sheet roll forming machine



1. 1000mm steel roofing sheet roll forming machine



1. GB standard raw material, good quality raw materail let machine have long working life.

2. The rollers have been heat treatment.

3. Easy operate PLC control system.

4. We provide 2 years warranty for machines.



2. 1000mm steel roofing sheet roll forming machine parameters



Raw material
material PPGI, PPGL, GI, Steel, Aluiminum
thickness of coil sheet 0.3 to 0.8 mm
material expand width 914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width 695mm/750mm/1000mm/1050mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300-400mm H steel
forming steps 15 stations
productivity 8-12 m/min
hydraulic station power 4 KW
hydraulic pressure 10-12MPa
appearance size 6700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 10 years



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. FAQ (about our roll forming machine)

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

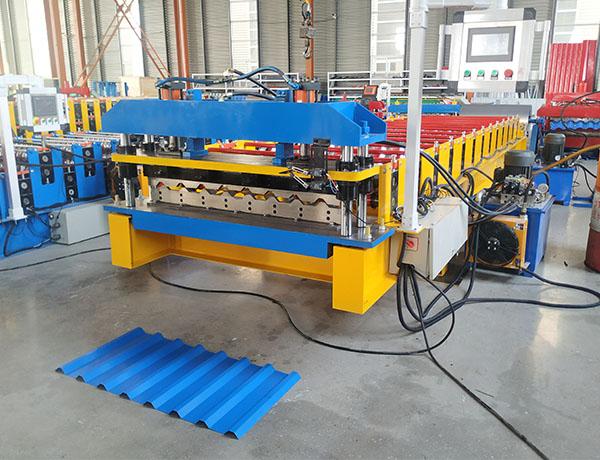

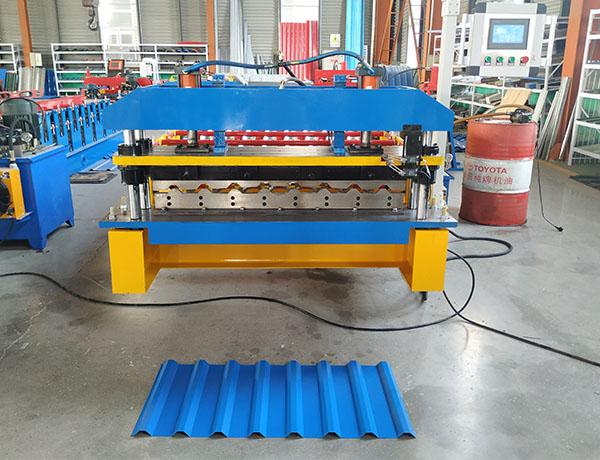

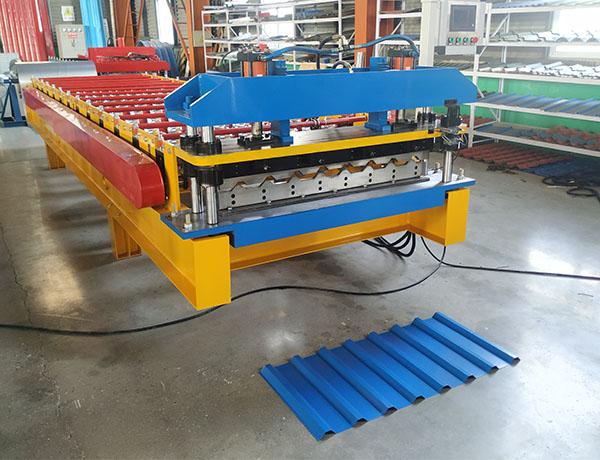

4. Machine pictures
