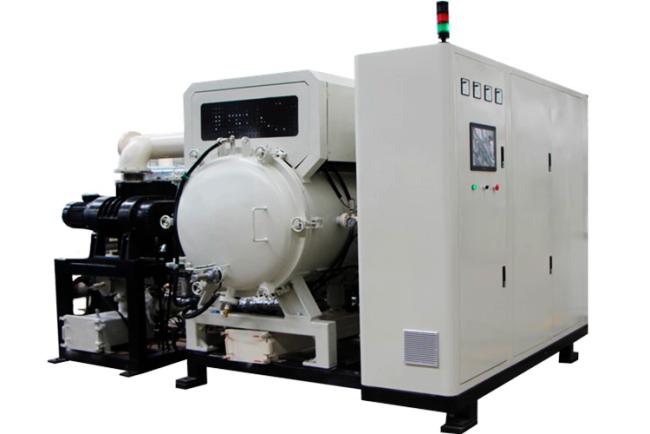

Graphite Rod Vacuum Debinding Furnace , 10Pa Negative Pressure Switch Gas Furnace

Vacuum Debinding Furnace

High Temperature Vacuum Debinding Furnace, Negative Pressure Degreasing Furnace 10 Pa

MIM (metal powder injection molding) negative pressure degreasing, degassing, high temperature sintering integrated the treatment.

• The square sealing box can be installed in the furnace, on the one hand, the furnace space is more compact and the utilization rate is improved. It can also reduce the consumption of gas and heating power. The most important is to prevent degreasing volatile gas that does not pollute the inner wall of the furnace and heat insulation materials, all discharged to the furnace.
• Inert gas (N2) is directly charged into the furnace chamber, and the vacuum is pre-pumped in the furnace chamber to effectively perform negative pressure degreasing.
• A multi-layer graphite pad, effectively uses the furnace space for loading materials.
• Heating using graphite rod, insulation using high purity graphite composite carbon felt.
• The highest heating temperature can reach 1600 degrees.
• Adopts slide valve pump + roots pump vacuum unit, which can pump vacuum to 10Pa in 10 minutes.

Optional accessories:

• Air intake device
• glass rotor flowmeter (cheap)
• Mass flow meter (precise control)
• Wax collection system

Technical parameters:
