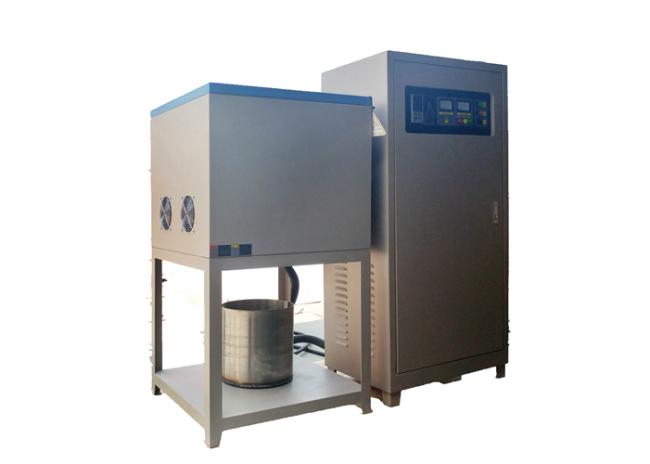

High Temperature 1700℃ Lab Glass Melting Furnace
High Temperature 1700℃ Lab Glass Melting Furnace
This High Temperature 1700℃ Lab Glass Melting Furnace is a special design for glass melting.
Brother muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
- Max working temperature 1700℃
- Chamber Size: Φ80X200mm
- High quality MoSi2 heating element.
- The upper door and the side door can be customized to keep the operator away from the heat source.
- 50 segments programmable and PID auto control
- With over temperature alarm function
Standard Spares:
- High temperature gloves
- Crucible clip
- Operation Manual
- MoSi2 heating element 2pcs
- Alumina Crucible
Optional Spares:
- 7-inch touch screen
- Gas vent
- Observation hole
- Furnace furniture
- Alumina crucible
- Software
Lab Glass Melting Furnace Technical Parameter (1700 type):
| Model |
Max temperature (°C) |
Inner size (W *H * D) mm |
Volume (L) |
Power (KW) |
Thermocouple |
| BR | 1700 | Φ80X200mm | 1 | 1 | B type |
| Chamber size can be customized | |||||
Why Us?
Manufacturer with 10+ years' experience
- Best quality
- Customized design
- Experienced workers
- Big factory
Customers from more than 30 countries choose us
- Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
- Free design for special furnace
- Free technical support for the lifetime
- Free sample test
If you are interested in our High Temperature 1700℃ Lab Glass Melting Furnace, contact us now to get a quote!
