Aluminum / Metal Melting Crucible Furnace , 1200 ℃ Industrial Sintering Furnace

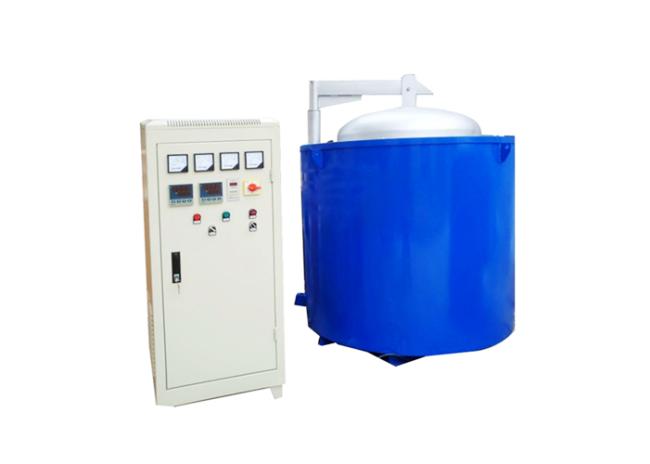

Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace

Brother's Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace is mainly used for melting and smelt of low melting point non-ferrous metals and alloy, such as Aluminum, Zinc, Tin, Copper, etc.

Furnace body:

The outer shell is made from high quality carbon steel in cylinder shape, furnace chamber is built with over lightweight refractory brick in well type, the space between furnace shell and furnace chamber is filled with aluminosilicate refractory fibers.

Heating element:

The heating element is Nickel-chromium alloy heating tape, Resting on the brick around the furnace, reinforced by Jack put brick, avoiding the heating element to fall out when Tilting, easier to change than heating resistance.

Crucible:

The crucible is made from graphite, put in the center of the furnace chamber, the melted material can keep warm in the crucible.

Tilting equipment (optional)

The tilting equipment is mechanical tilting, tilting the metallic solution automatically.

Let out hole:

There is a let out hole in the the lower part of the front, leting out the liquor, protecting the heating element and furnace chamber.

• Max temperatue: 1200℃
• Furnace chamber: Top Loading
• Volume: as per your order
• Heating elements: Nickel-chromium alloy heating tape
• 50 segments programmable and PID auto control
• With over temperature alarm function

Standard Spares:

• High temperature gloves
• Crucible clip
• Operation Manual

​
Optional Spares:

• Software
• Furnace furniture
• Alumina crucible

Chamber size: as per your order

Why Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace?

Manufacturer with 10+ years' experience

• Best quality
• Customized design
• Experienced workers
• Big factory

Customers from more than 30 countries choose us

• Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

• Free design for special furnace
• Free technical support for the lifetime
• Free sample test

If you're interested in our Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace, contact us now to get a quote!
