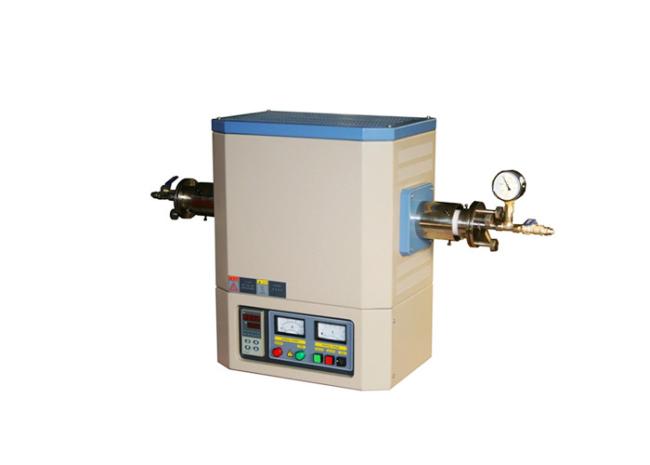

1600℃ High Temperature Vacuum Diffusion Tube Furnace, 1600C Diffusion Tubular Furnace
Brother's 1600℃ High Temperature Vacuum Diffusion Tube Furnace, 1600C Diffusion Tube Furnace, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc.
- Max temperature:1600℃ (MoSi2 Heater)
- 50 segments programmable and auto control
- Furnace structure, double layer steel dual cooling fan, the surface temperature below 50℃
- 304 stainless steel sealing flange
- Adjustable flange support structure at both ends to extend furnace tube life
- Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
- Safety protection Automatically power off when the furnace body leaks
- Heating rate ≦20℃/min
- Temperature accuracy ±1 ℃
- Max vacuum -0.1MPa
- Configuration molecular pump, Vacuum 7x10^(-4)Pa
Standard Spares:
- Plugging tube 4 pcs
- Furnace tube 1 pc
- Vacuum pump 1 pc
- Vacuum sealing flange 2 sets
- Vacuum gauge 1 pc
Optional Spares:
- Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
- Atmosphere system (Float flow meter, Mass flow meter)
- Quick release flange, Three-way flange
- 7 inch HD touch scree
1600℃ High Temperature Vacuum Diffusion Tube Furnace Standard specification:
| Model |
Dia* Heating zone |
Power | Max working temperature | Thermocouple | Furnace tube material | Heating elements |
| BR-16MT-40/300 | 40x300mm | 4 KW | 1600℃ | B type | Alumina tube | MoSi2 Heater |
| BR-16MT-60/300 | 60x300mm | 4 KW | ||||
| BR-16MT-80/300 | 80x300mm | 4 KW | ||||
| BR-16MT-100/300 | 100x300mm | 6 KW | ||||
| BR-16MT-120/300 | 120x300mm | 6 KW | ||||
| BR-16MT-40/450 | 40x450mm | 5 KW | ||||
| BR-16MT-60/450 | 60x450mm | 5 KW | ||||
| BR-16MT-80/450 | 80x450mm | 5 KW | ||||
| BR-16MT-100/450 | 100x450mm | 7 KW | ||||
| BR-16MT-120/450 | 120x450mm | 7 KW |
Why Brother's 1600℃ High Temperature Vacuum Diffusion Tube Furnace?
Manufacturer with 10+ years' experience
- Best quality
- Customized design
- Experienced workers
- Big factory
Customers from more than 30 countries choose us
- Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
- Free design for special furnace
- Free technical support for the lifetime
- Free sample test
If you're interested in our 1600℃ High Temperature Vacuum Diffusion Tube Furnace, 1600C Diffusion Tube Furnace, contact us now to get a quote!
