4 Side Heating Bogie Hearth Furnace , PID Auto Control Carrier Electric Furnace

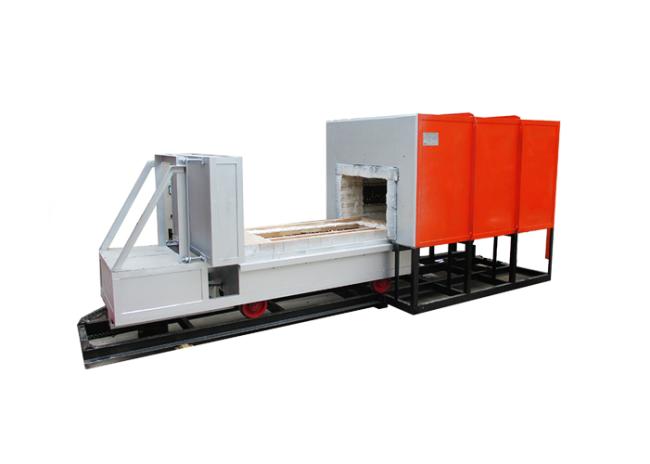

High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃
The design of High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃ is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.
- Maximum temperature 1200℃.
- All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
- The four-side heating device achieves excellent temperature uniformity.
- Japanese ceramic nails, ensure the installation of heating elements with a long lifetime.
- Build a horizontal silicon carbide plate/high temperature cast steel plate for the trolley.
- Intelligent program temperature controller, which is available to edit and save the multi-segment program.
Standard Spares:
- Electrical hydraulic lift furnace door.
- Circulating hot air blower and thermal deflector.
- Horizontal moveable auxiliary trolley.
- Automatically turn-able trolley easy for quenching.
- Temperature control by different zones to improve temperature uniformity.
- Visualized PLC automatic control system to monitor and record in real time.
- Top exhaust valve, and inlet valves on both sides.
Optional Parts:
- 7-inch touch screen
- Furnace furniture
- Software
High Temperature Electric Heated Bogie Hearth FurnaceTechnical Parameter (0～1200℃)
| Model | Chamber size (LWH)mm | Power (KW) | Dimensions (LWH)mm |
| BR-CBF-65 | 1100×550×450 | 65 | 3100×1600×1750 |
| BR-CBF-75 | 1300×650×450 | 75 | 3300×1700×1750 |
| BR-CBF-110 | 1500×700×600 | 110 | 3500×1750×1900 |
| BR-CBF-120 | 1500×800×600 | 120 | 3500×1850×1900 |
| BR-CBF-150 | 1800×900×700 | 150 | 3800×1950×2000 |
| BR-CBF-210 | 2100×1050×750 | 210 | 4120×2130×2110 |
| BR-CBF-220 | 2300×1200×650 | 220 | 4320×2680×2010 |
| BR-CBF-450 | 2500×1500×1500 | 450 | 4750×2980×2870 |
Why Brother's Electric Heated Car Bottom Furnace up to 1200℃?
Manufacturer with 10+ years' experience
- Best quality
- Customized design
- Experienced workers
- Big factory
Customers from more than 30 countries choose us
- Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
- Free design for special furnace
- Free technical support for the lifetime
- Free sample test
If you're interested in our High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃, contact us know to get a quote!
