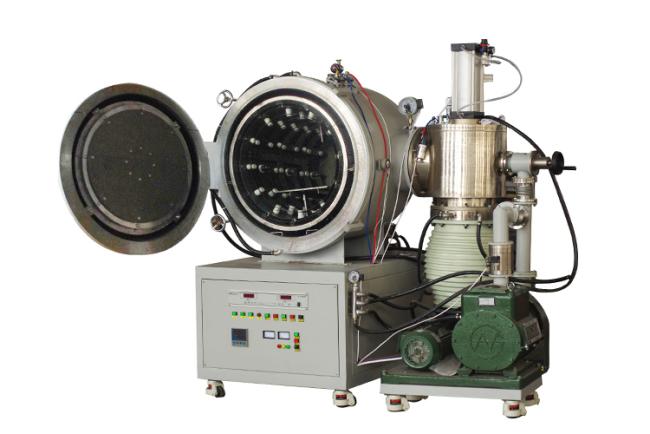

Molybdenum Foil Heating Vacuum Brazing Furnace 1350 Degree
High Temperature 1350℃ Molybdenum Foil Heating Vacuum Weld Brazing Furnace
Vacuum Weld Brazing Furnace Features:
- Using molybdenum foil metal furnace, and molybdenum and tropical for heating element, the highest temperature can reach 1350℃.
- The annular distribution of molybdenum heating belt and the furnace, the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.
- Clean Molybdenum foil chamber, equipped with a mechanical pump + diffusion pump vacuum unit, cold vacuum 10^(-3)pa; Working vacuum is 10^(-2)pa.
- As required, the inert gas can be added for accelerated cooling.
1350℃ Vacuum Weld Brazing Furnace Technical parameters:
| Model | Chamber size | Temp. | Power | Voltage |
| BR-QHM-223 | 200*200*300 | 1350℃ | 42kW | 380V |
| BR-QHM-334 | 300*300*400 | 1350℃ | 72kW | 380V |
| BR-QHM-446 | 400*400*600 | 1350℃ | 120kW | 380V |
| BR-QHM-557 | 500*500*700 | 1350℃ | 160kW | 380V |
| BR-QHM-669 | 600*600*900 | 1350℃ | 225kW | 380V |
This kind of High Temperature Vacuum Weld Brazing Furnace working temperature can reach 1350℃; Suitable for PCD tools brazing in the vacuum environment. Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.
Vacuum Weld Brazing Furnace with quick cooling system
Due to the slow cooling of ordinary brazing furnace, the production efficiency is seriously affected. In order to accelerate the cooling rate, our company combined with years of production practice experience developed a vacuum brazing furnace rapid cooling system. The high-temperature nitrogen in the furnace is forcefully pumped out by the vacuum fan, cooled by the cooling water bag, and then sent back to the furnace by the vacuum fan. This rapid cycle leads to rapid cooling.
Optional accessories:
- External quick cooling system;From soldering temperature to 180 degrees, less than 1 hour.
- Multi-layer rack, convenient for placing multi-layer brazing workpieces.
- High quality flux imported from USA.
Why Brother's Vacuum Weld Brazing Furnace?
Manufacturer with 10+ years' experience
- Best quality
- Customized design
- Experienced workers
- Big factory
Customers from more than 30 countries choose us
- Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
- Free design for special furnace
- Free technical support for the lifetime
- Free sample test
If you're interested in our High Temperature 1350℃ Molybdenum Foil Heating Vacuum Weld Brazing Furnace
, contact us now to get a quote!
