MIS-8705 Fanless Box PC Board Mounted I7 3520M CPU Dual Network 10 Series 6 USB

Name: MIS-8705 Fanless Box PC Board Mounted I7 3520M CPU Dual Network 10 Series 6 USB
Brand: Shenzhen Yanyue Technology Co., Ltd

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: According to Quantity

Brand: Yanyue

Product Description

MIS-8705 All-aluminium fan-free embedded IPC, board-mounted i7 3520M CPU, dual-network 10 series 6 USB

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Modular Wireless Material Design

■ On board i7 3520M CPU

■ Dual Network 10 Series 6 USB, Optional Parallel Port

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

Specification parameters				Optional configuration
Chassis	All-aluminium toothed chassis, sandblasted titanium oxide ash			Other colours can be customized

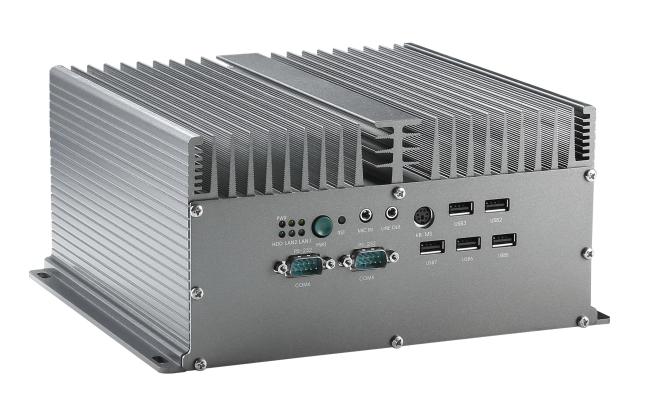

Front	Power switch; Power/HDD/LAN1/LAN 2 indicator; Mic in+Line out; PS/2; 2COM RS232; 5USB2.0; Parallel port (optional)

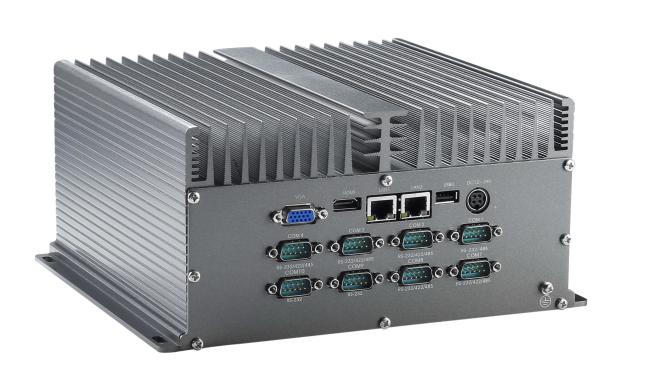

Back	DC12-24V input; VGA+HDMI display; 1USB; 2RJ45 Gigabit Network port; 5RS232/422/485+1RS232/485+2RS232 serial port
Hard disk rack	1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard	Dedicated motherboard
CPU/GPU	Intel i7 3520M
Memory	4G DDR3			Optional 8G DDR3 notebook memory
Hard disk	128G MSATA			Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size	246209114mm			Net/Gross Weight	3.5/4KG
Industrial Power Supply	Standardized 12V@5A adapter
Installation mode	Bracket installation
Work and Environment
Working temperature	0～60℃	Storage temperature	-40～75℃	Environmental humidity	0~90% air humidity, no condensation
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Shock	10g acceleration, 11ms duration

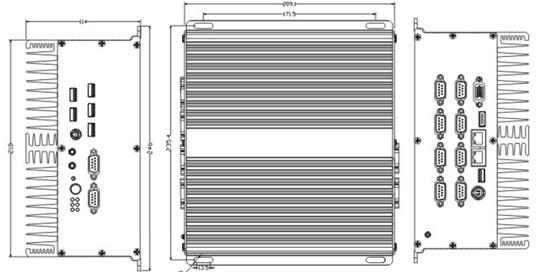

Installation Dimension Diagram
