PLM-1001TW 10.1" Industrial Lcd Touch Screen Monitor Capacitive Touch Wide
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
According to Quantity
Brand:
Yanyue
Product Description
PLM-1001TW 10.1" wide screen touch industrial display, capacitive touch screen
Features:
■ Aluminum alloy wire drawing panel
■ Waterproof grade IP65 for panel
■ DC12V power input
■ Resistance touch screen, OEM capacitive screen
■ Various installation options
| Specification parameters | Optional configuration | |||||||
| Front panel | Aluminum alloy panel, silver | Optional black or other colors | ||||||
| Back chassis | 1.2mm Steel plate, Silver； OSD Menu | Optional industrial black or other colours | ||||||
| LCD screen | 10.1 "TFT, LED backlight; resolution 1280 * 800; lattice: 0.1695 * 0.1695; maximum color: 16.7M; brightness: 350cd / ㎡; contrast: 1300:1; response speed: 25ms; MTBF: 30000h viewing angle: (+ 85° - 85°) (+ 85° - 85°); | |||||||
| Touch screen | Capacitance Touch Screen | Customizable resistance screen | ||||||
| Interface | DC12V； VGA； USB | |||||||
| Size | 273mm(length)* 190mm(width)* 28mm(thickness) | Weight | 1.5/2KG | |||||
| Industrial Power Supply | 12V@5A industrial adapter | |||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP65 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

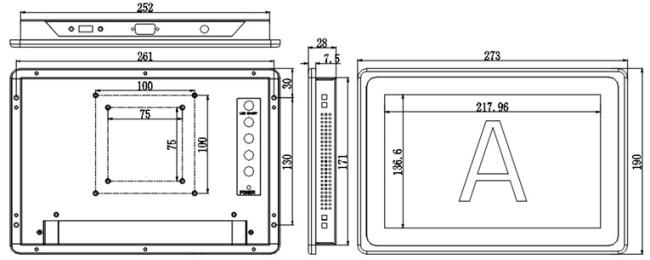

| Installation Dimension Diagram |  |
|||||||
