12.1" Panel PC , resistance touch , Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
According to Quantity
Brand:
Yanyue
Product Description
IPPC-1203T 12.1" Panel PC , resistance touch , Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB
Features:
■ Supports all generations I3/I5/I7 U Series CPU
■ Aluminum brushed panel
■ Waterproof grade IP64 for panel
■ Ultra-low power design
■ 2LAN , 4COM , 4USB
■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk
■ Various installation options
■ Resistance Touch Screen
| Specification parameters | Optional configuration | |||||||
| Front panel | Aluminum alloy panel, the nature of wire drawing oxidation | Optional black or other colors, optional sandblasting treatment | ||||||
| Back chassis | 1.2mm Steel plate, Silver | Optional industrial black or other colours | ||||||
| Adapt motherboard | Low-power ITX motherboard | All low power ITX motherboards of Yanyue are optional | ||||||
| LCD screen | 12.1” TFT,LED backlight； Resolution 1024*768 Lattice:0.297*0.297； Maximum color:16.7M； Brightness:350cd/㎡； Contrast:800:1； Response spee:16ms； MTBF:50,000h Visual angle:(+80° ~ -80°) (+80° ~ -80°)； | |||||||
| Touch screen | 5-wire resistance screen | Customizable Capacitance Screen | ||||||
| CPU/GPU | Intel i5 3317U | J1900 and 3th/4th/6th/7th/8th/10th Generation U Series CPUs for Selection | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory | ||||||
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk | ||||||
| Interface | DC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 4COM; DC interpolation | Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input | ||||||
| Size | 315mm(length)* 250mm(width)* 59mm(thickness) | Weight | 4/5KG | |||||
| Industrial Power Supply | 12V@5A adapter, Taiwan Qiaowei Brand | Optional non-configuration | ||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP64 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

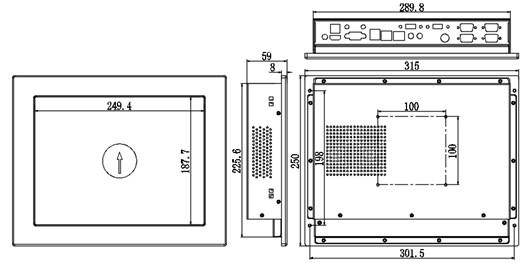

| Installation Dimension Diagram |  |
|||||||
