Flexible Spiral Mesh Belt Food Grade Corrosion Resistance For Vegetable Blanching
Flexible ss spiral wire mesh belt food grade for Vegetable blanching
Description of spiral mesh belt

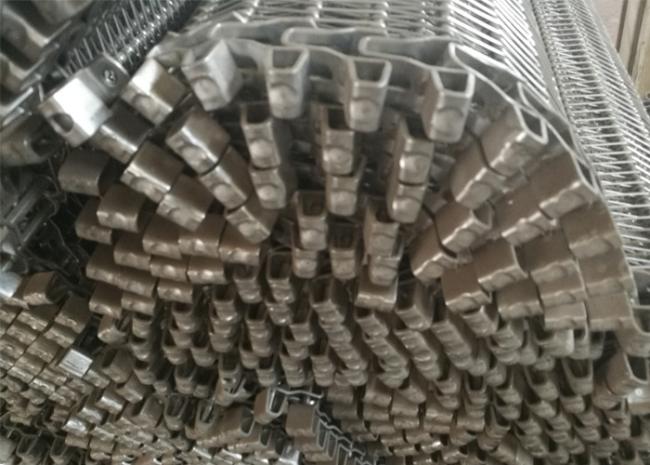

Spiral mesh belt is usually used in quick-frozen food industry. It is one of the indispensable accessories of quick-frozen machine. It is different from ordinary woven metal mesh belt. This kind of mesh belt is composed of thick stainless steel straight bar, U-shaped chain and stainless steel cap
Spiral Wire mesh Belts are used through a variety of industries from food processing to heat treatment. Wire belt patterns include: Balance, Compound, Duplex, Chain Driven, Baking Bands, etc.Spiral wire belting makes the premier material for the major conveyor applications.
Spiral Wire conveyor belt is made of various metals which will withstand both atmospheric and chemical corrosion, or of any alloy which will resist heat treating furnace temperatures. To eliminate any danger of product contamination, stainless steel wire belts are recommended.

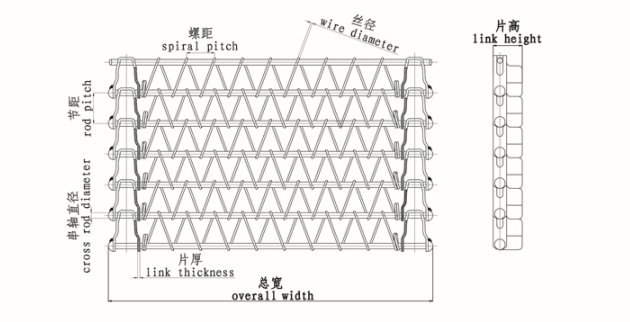

Detail datas of spiral mesh belt
| Item | Pitch | Belt width | Rod diameter | Wire diameter | U-shaped chain link height | Width of U-shaped chain link |
| Normal chain link type | 3/4" | 2.2 | 5mm | 2mm | 11mm | 28mm |
| Normal chain link type | 1" | 1.7 to 2.2 | 5mm | 2mm | 11mm | 29mm |
| Heavy duty chain link type | 1" | 2.2 | 5mm | 2mm | 11mm | 36mm |
| Heavy duty chain link with double reinforcing plate links | 1" | 1.7 to 2.2 | 5mm | 2mm | 11mm | 41mm |
| With middle chain links | 3/4" | 1.1 (inner) | 5mm | 2mm | 11mm | 28mm |
Application of spiral mesh belt
Food Industry – Conveying, washing, blanching, drying, frying, freezing, baking, cooling, wrapping, packing, canning, bottling etc.
Heat Treatment - Brazing, bluing, hardening, washing, degreasing, pickling, sintering, quenching, rinsing, tempering, drawing, enameling, etc.
