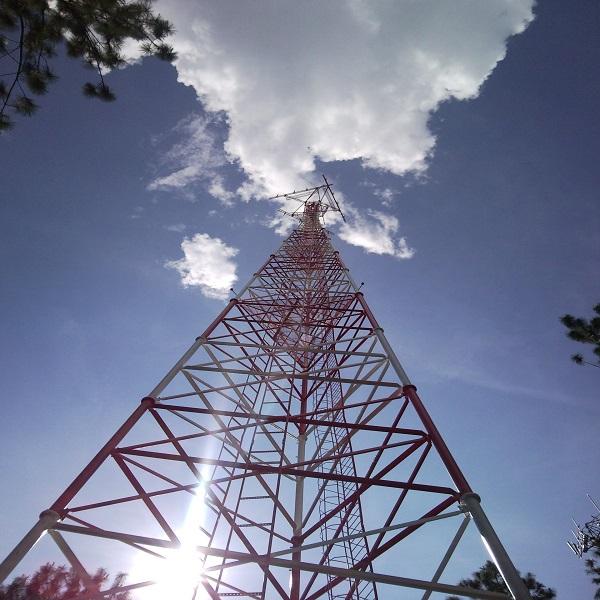

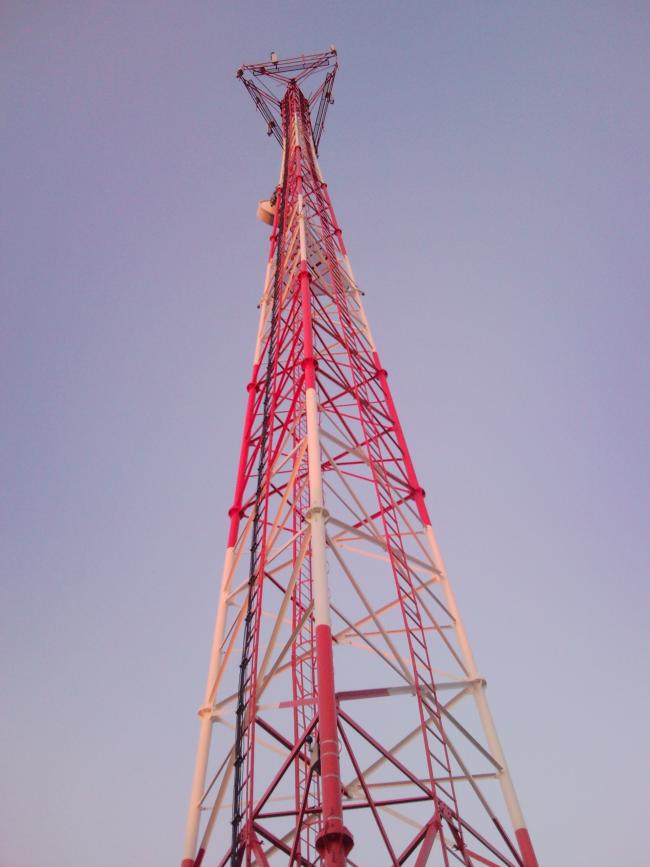

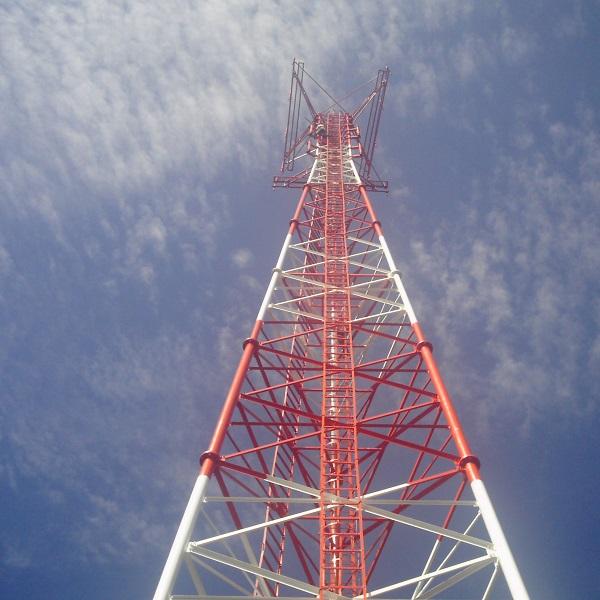

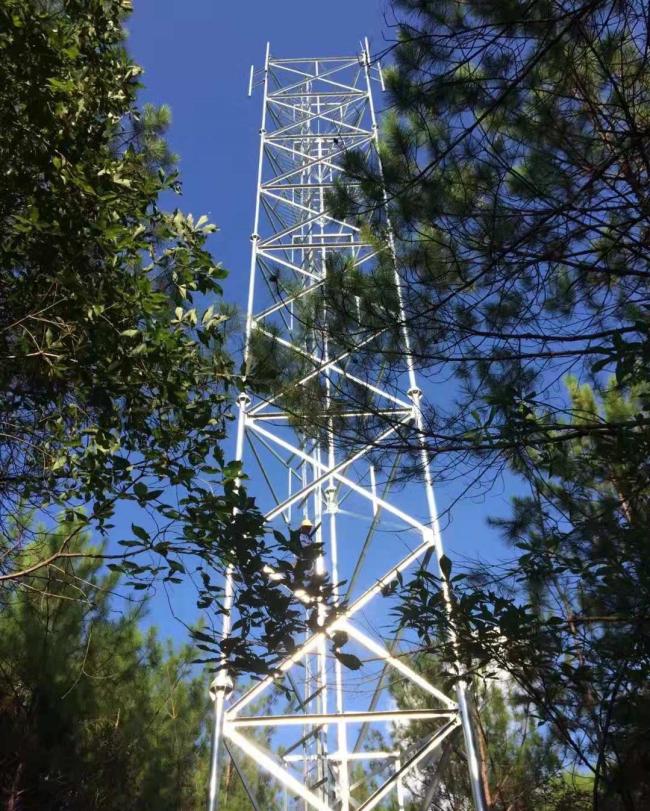

Telecommunication Steel Tubular Tower Hot Dip Galvanized Steel Tower
High Quality Telecommunication Tubular Hot-Dip Galvanized Steel Tower
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |

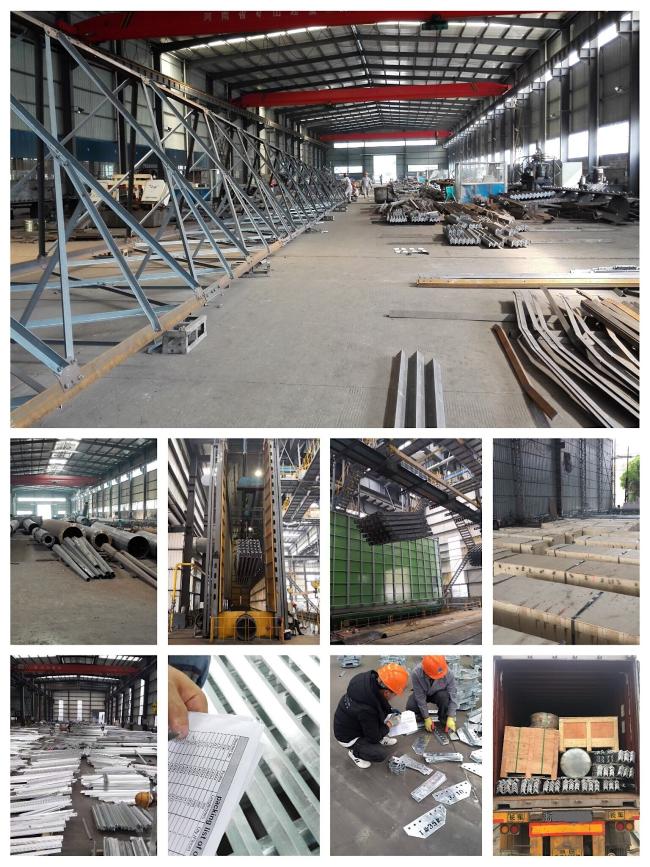

Our Workshop:
Before put into production, all the material must pass the chemical and physical analysis to make sure that
they have met the requested strength and component. we have more than 15 inspection procedures from
incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee
the quantity.
Competitive Advantage:
Why Us
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
4.Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure
our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be
available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an
excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD
and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid
the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project
delivers as specified. What’s more, he/she communicates with you every step of the way.
1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50
years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering
survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and
so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and
made an outstanding contribution to UHV transmission lines of China.
Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,
Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.
We have got a number of international certificates, such as ISO certificate covering design, equipment and
construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,
Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more
than 30% of the company's main revenue. We have provided high-quality products and services to more than 100
customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical
support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
To improve the products’ quality and provide superior service for our customers, DINGLI has started using new
Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA,
which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental
protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization,
which can meet ASTM standard, EN standard, GB standard under the computer control system.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.
We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,
Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production
line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with
common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers are
local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the
weight, and avoid the replacement on the profiles to save the working time.
Delivery Site of Client
4. Package
Set-wisely packing or member-wisely packing as per client's requirements.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
5. Global-network map
China
Henan DINGLI Pole and Tower Co., ltd.
Henan Zhongdingxin Detection Technology Co.,ltd.
Henan Dadi Electricity Engineering Co.,ltd.
Henan DINGLI Power Equipment Co.,ltd
Henan DINGLI Power Construction Co., ltd
Huading Concrete Pole Co., Ltd
Xingjiang Huili Steel Tower Co., Ltd.
Bazhou Dingli Tower Co., Ltd.
Shanghai Sales and Service Center
Beijing Sales and Service Center
Cambodia
Cambodia Phnom Penh Factory
Spain
Madrid (Spain) Sales and Service Center
Dakar, Senegal
Senegal (Dakar) Sales and Service Center
Senegal (Dakar) Spare Part Warehouse
Quito, Ecuador
Quito (Ecuador) Steel Tower Design Center (ASTM Standard)
Quito (Ecuador) Steel Tower Emergency Production Line
Quito (Ecuador) Raw Material and Spare Part Warehouse
Lima, Peru
Lima (Peru) Sales and Service Center
Cochabamba, Bolivia
Cochabamba (Bolivia) Raw Material and Spare Part Warehouse
Santiago, Chile
Santiago (Chile) Sales and Service Center
Jakarta, Indonesia
Jakarta (Indonesia) Sales and Service Center
6. International Fully Automatic Pollution-free Galvanizing Line
All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.
In the new production line, we invest whole package of lifting equipment, all the loading works will be completed
in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to
protecting our products as always.
The new production line has improved on the part number tracking system, with this system we are doing better
to avoid the missing parts problem.
7. Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and
found ways to solve it together. They set a high value on this cooperation.
8. Customers and Partners of Dingli
