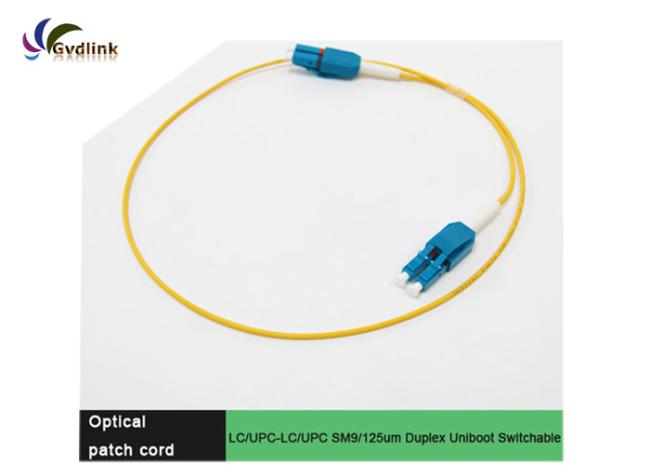

Patch cords LC/UPC-LC/UPC SM 9/125um OFNR 2mm

Patch cords optical cable
       Gvdlink Patch cords are with various kinds of fiber optic connector types . According to fiber optic connector types are classified by patch cord types .They are used for linking the equipment and components in the fiber optic network .

Applications

Optical fiber CATV equipment

Optical Fiber Distribution
Optical instrumentation

Optical communication equipment

Fiber optic connectors
Fiber Optic Test Equipment


Features

LC-LC
Low insertion loss
Repeatability , good interchangeability

Excellent environmental stability
Size precision , matching
Compact design
Accord with Telcordia , ANSI , the TIA / EIA , NTT , JIS and other standards

Parameters
Insertion Loss : <= 0.2dB
Repeatability : <= 0.2dB (1,000 sub-standard plug)
Interchangeability : <= 0.2dB
Operating temperature :-40 ~ +75 degrees Celsius
Storage Temperature :-40 ~ +80 degrees Celsius

Ordering options:

Model : LC-SC , LC-FC , LC-ST ,FC-ST , SC-ST , FC-SC , LC-LC
pathway : SX , DX , MM(OM3/OM4) , SM ,
main material : plastic , metal
sleeve materials : ceramic sleeve , metal sleeve

Our product show

FAQ

Q1. Can I have a sample order for this product? What' MOQ of it?
A:Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 2-3 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
