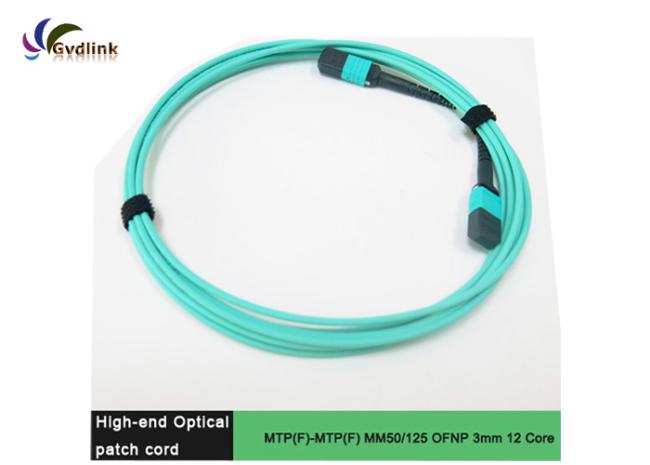

Patch cords MTP-MTP female MM OFNP 3mm 12 Cores

MTP-MTP optical cable
       MTP / MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and
other high fiber environments , reducing network installation or reconfiguration time and cost . They are used to interconnect
cassettes , panels or ruggedized MTP/MPO fanouts , spanning MDA , HDA and EDA zones

Features

• Fiber-count 12 and 24 fibers
• Suitable for 8 fiber SR4 deployments (12 fiber)
• Type B standard (other polarities available)
• Compact 3mm diameter for easy routing
• Female – Female standard (hybrid variants available)
• Bend-insensitive/bend optimized fibers
• OS2 , OM3 and OM4 performance types
• Plenum (OFNP / FT6) , LSZH Riser OFNR (FT-4-ST1)
• Colored outer-jacket to denote performance
• Ultra-low loss connector performance

Our product show
