EML CWDM XFP Fiber Transceiver 10G 1531nm 80km APD Receiver 3.5W
CWDM-XFP10G-1531 02310LQX HW Compatible 10G CWDM XFP ZR 1531nm 80km DOM LC SMF Transceiver Module
the Duplex LC 1470nm-1610nm Optical Transceiver 10G CWDM XFP ZR 80km 10G 80km CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module.It is designed for 10G CWDM SDH,10GBASE-ZR/ZW and 10G Fiber-Channel applications.The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD integrated with a TIA. All modules satisfy class I laser safety requirements. It's widely used with CWDM Mux Demux together.
The CWDM SFP+ or XFP solution for user
Features
- 1470nm-1610nm CWDM grid wavelengths
- XFP MSA Rev 4.5 Compliant
- Data rate from 9.95Gbps to 11.3Gbps
- No Reference Clock required
- Cooled EML and APD receiver
- link length up to 80km
- Low Power Dissipation 3.5W Maximum
Our HW XFP 10G compatible Product series
| Gvdlink model | HW Model | Specification |
| GVD-CW-XFP-47 | CWDM-XFP10G-1471 02310LQS | CWDM XFP 10G 1471nm 70km |
| GVD-CW-XFP-49 | CWDM-XFP10G-1491 02310LQU | CWDM XFP 10G 1491nm 70km |
| GVD-CW-XFP-51 | CWDM-XFP10G-1511 02310LQV | CWDM XFP 10G 1511nm 70km |
| GVD-CW-XFP-53 | CWDM-XFP10G-1531 02310LQX | CWDM XFP 10G 1531nm 70km |
| GVD-CW-XFP-55 | CWDM-XFP10G-1551 02310LQY | CWDM XFP 10G 1551nm 70km |
| GVD-CW-XFP-57 | CWDM-XFP10G-1571 02310LRB | CWDM XFP 10G 1571nm 70km |
| GVD-CW-XFP-59 | CWDM-XFP10G-1591 02310LRC | CWDM XFP 10G 1591nm 70km |
| GVD-CW-XFP-61 | CWDM-XFP10G-1611 02310LRE | CWDM XFP 10G 1611nm 70km |
Applications
- SONET OC-192&SDH STM 64
- 10GBASE ZR/ZW
- 10G Fiber Channel
- CWDM Networks

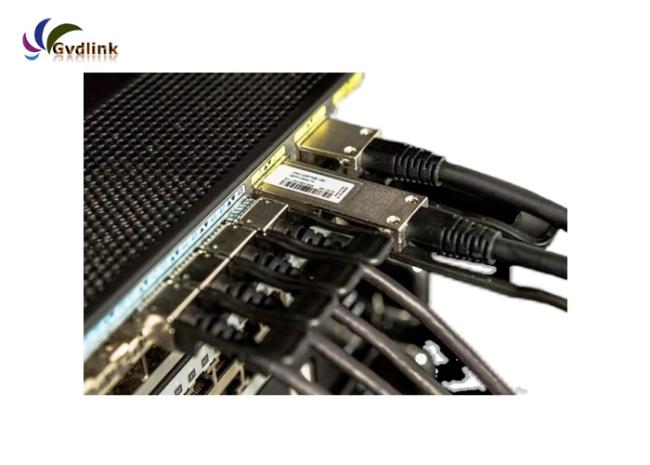

Our product line show
