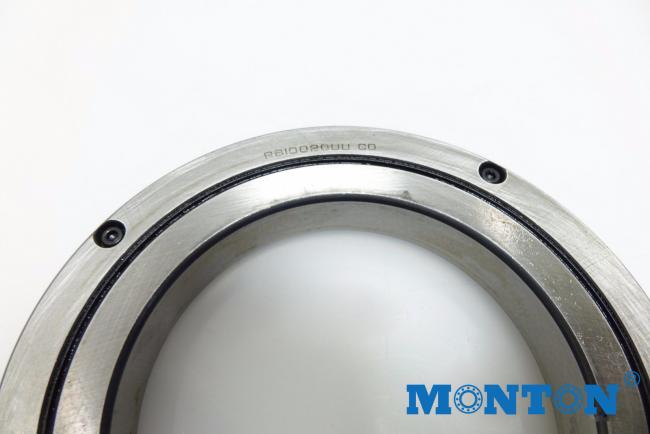

RB50025UUCC0P5 RB50040UUCC0P5 RB50050UUCC0P5 Precision Crossed Cylindrical Roller Slewing Bearings
RB50025UUCC0P5 RB50040UUCC0P5 RB50050UUCC0P5 Precision Crossed Cylindrical Roller Slewing Bearings
RB50025UUCC0P5
RB50040UUCC0P5
RB50050UUCC0P5
| Shaft Diameter | Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating(radial) | weight | ||
| d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
| 500 | RB50025 | 500 | 550 | 524.2 | 25 | 3.6-1.6 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
| 500 | RB50040 | 500 | 600 | 548.8 | 40 | 6-3 | 2.5 | 526 | 572 | 239 | 607 | 26 |
| 500 | RB50050 | 500 | 625 | 561.6 | 50 | 6-3.5 | 2.5 | 536 | 587 | 267 | 653 | 41.7 |
precision angular contact ball bearing
precision angular contact ball bearings
precision angular contact bearings
precision ball slewing rings made in china
precision cross roller bearing factory
precision cross roller bearing made in china
precision cross roller slewing ring
precision crossed cylindrical roller slewing bearings
precision crossed roller bearing
precision crossed roller bearing factory
precision crossed roller bearing made in china
precision crossed roller slewing bearings
precision crossed tapered roller bearings
precision cylindrical roller bearings
precision double direction angular contact thrust ball bearings
Model RB (Separable Outer Ring Type for Inner Ring Rotation)
Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.
Structure and Features
With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacentroller, in a 90° V groove, separated from each other by a spacer retainer. This design allows
just one bearing to receive loads in all directions including radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the
inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial
robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables,
medical equipment, measuring instruments and IC manufacturing machines.
Concept of the Cross Roller Ring
The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the
double cone roller bearing and angular contact ball bearing which had been popular.
Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,CNC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
