ANSI Surface Resistivity Silicone Rubber Pad Phenol Tested Heat Resistant Mat
Price:
Negotiable
MOQ:
USD100
Delivery Time:
8 working days
Brand:
BOALV
Product Description
ANSI Surface Resistivity Silicone Rubber Pad Phenol Tested Heat Resistant Mat
Silicone is a versatile materail that works well across many different industries, from medical to tech.
Silicon part are usually used together with double-sided adhesive tape. It can be used as cushion under keyboard, wireless charger, etc. It is not so smelly as NR rubber, this is why it is so popular. But NR, NBR are also needed in the case where people will not touch them. EPDM is required under the sunshine or malcondition.
| Item | Testing value | Unit | Test standard |
| materials | silicon+PET | - | - |
| color | all colors | - | per customer reqirment |
| thickness | 0.05T-5T | mm | thickness gauge |
| continuous temp | -30℃-160℃ | ℃ | EN344 |
| relative humidity range | 15-98 | % | - |
| hardness(shore A) | per customer reqirment | Shore A | ASTM-D2240 |
| elogation rate | ＞300 | % | ASTM-D412 |
| tesile strength | 24.1 | Mpa | ISO527-1 Amd. 1-2005,ISO 527-3-1995Cor.2-2001(E) |
| break elongation | ＞85 | % | |
| most strength | 260.1 | N | |
| tension test | ＞7 | kgf | ASTM D4112 |
| breakdown voltage | ＞15 | kv/mm | IEC:60243-1:1998 |
| friction coefficient | 0.58-0.78 | μ | ASTM D1894 |
| surface resistivity | 2.9*1013 | Ω/sq | ANSI/ESD ST,11.11-2001 |
| ROHS test | pass | - | EPA3050B/EN112:2001 |
| phenol test | pass | - | DIN53313 |

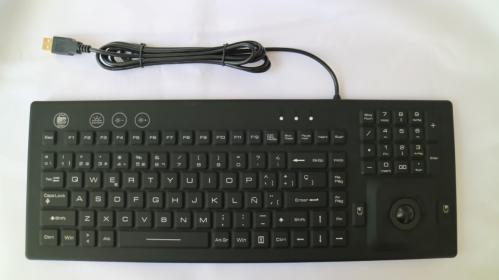

Used in Keyboard:
