SJSZ65/132 Fireproof PVC Wall Panel Extrusion Machine Easy Operation
Waterproof PVC WPC Wall Panel Profile Production Line
Specification of Machine
PVC wall panel profile production line / WPC profile extruder making machine can be discussed based on different materials, it is a kind of high efficiency equipment for plastic extrusion. Within different mould and other auxiliary equipments, it can produce plastic PVC WPC door frame, PVC window,PVC ceiling profile,PVC cable trunking and so on.

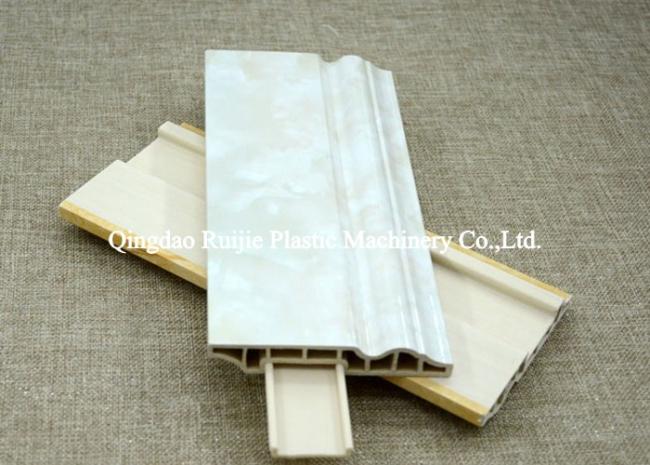

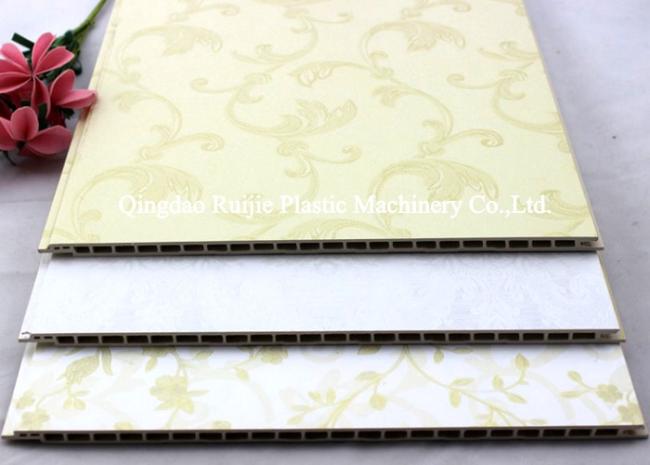

PVC WPC wall panel size: 300mm,400mm,600mm width. Thickness is 7-9mm.
Advantages of WPC Wall Panel
Low carbon and environmental protection,heat preservation and heat insulation, anti-corrosion and durable,moisture proof,easy to clean,fashion and elegance,saving time and labor,super sound insulation performance,etc.
Raw Materials List
| No | Name |
| 1 | PVC |
| 2 | Caco3 Powder |
| 3 | Wood Powder |
| 4 | AC foaming agent |
| 5 | Foaming agent regulator |
| 6 | ACR401 |
| 7 | CPE135A |
| 8 | Stabilizer |
| 9 | PE wax |
| 10 | Stearic acid |
| 11 | Recycled PVC powder |
Process Flow
SJZ Series Conical Twin Screw Extruder Machine → mould → Vacuum Calibration Table → Haul-off unit→ Cutting Machine → Auto-stacker.
(Note: Other Auxiliary Machine, such as Crusher, Pulverizer, Mixer, will be provided according to client's requirements)
Models
SJSZ51/105 PVC WPC wall panel profile production line, used for producing less than 200mm (width) profile.
SJSZ65/132 PVC WPC wall panel production line,used for producing 300-600mm (width) PVC WPC wall panel.
Configuration
| No | Name | Quantity |
| 1 | Automatic Feeding Machine | 1set |

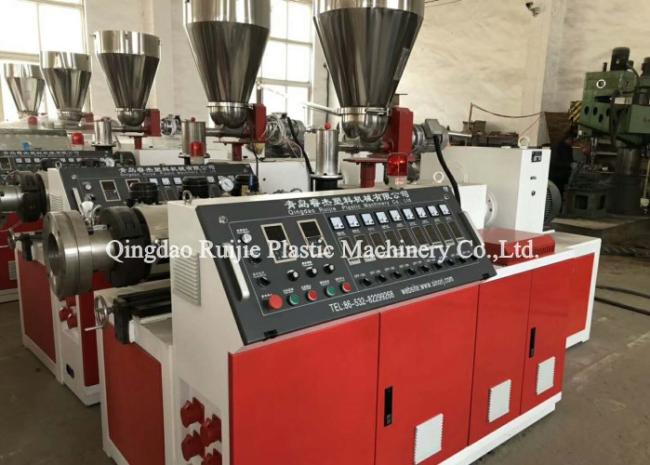

| 2 | SJSZ series Conical twin-screw Extruder | 1set |
| 3 | Mould | According to client's drawing ot sample |
| 4 | Vacuum Calibrating Table | 1set |
| 5 | Haul-off Machine | 1set |

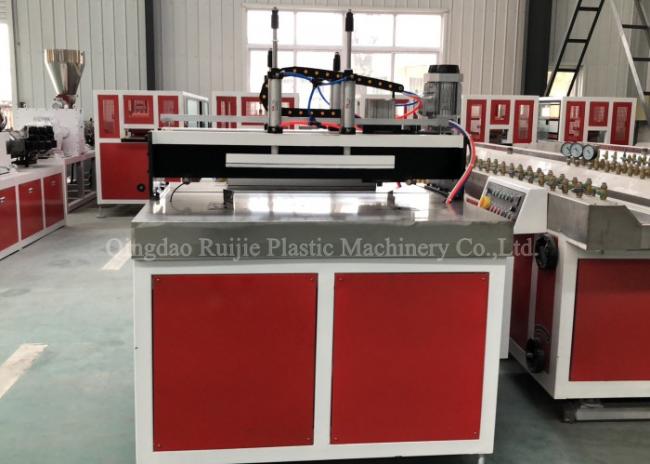

| 6 | Cutting Machine | 1 set |
| 7 | Auto-stacker | 1set |
