Product Description
Easy Installation Home Interior Plastic Wall Panel Extrusion Machine

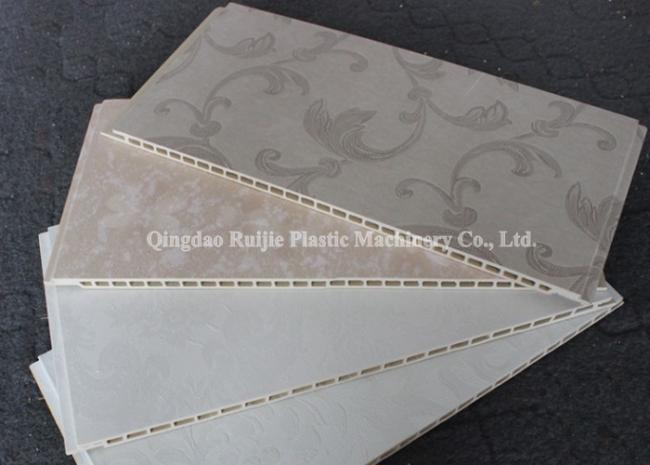

PVC WPC (Wood Plastic Composite) wall panel is made in a High-Tech process with a unique combination of wood fiber and new plastic, which is recyclable with stability, providing best 100% eco-friendly, water/fire proof, flexibility and non-deformation choices for interior decoration.
Raw Materials List
| No | Name |
| 1 | PVC |
| 2 | Caco3 Powder |
| 3 | Wood Powder |
| 4 | AC foaming agent |
| 5 | Foaming agent regulator |
| 6 | ACR401 |
| 7 | CPE135A |
| 8 | Stabilizer |
| 9 | PE wax |
| 10 | Stearic acid |
| 11 | Recycled PVC powder |
Process Flow
SJZ Series Conical Twin Screw Extruder Machine → Die mould → Vacuum Calibration Table → Haul-off → Cutting Machine → Stacker.
(Note: Other Auxiliary Machine, such as Crusher, Pulverizer, Mixer, will be provided according to client's requirements)
Models
| Model | SJZ51 | SJZ55 | SJZ65 | SJZ80 |
| Screw diameter (mm) | 51/105 | 55/120 | 65/132 | 80/156 |
| Main motor power (kw) | 18.5 | 22 | 37 | 55 |
| Barrel heating power (kw) | 12 | 12 | 16 | 32 |
| Capacity (kg/h) | 80-120 | 100-150 | 130-180 | 250-350 |
| Product width(mm) | Less than200 | Less than300 | 300-600 | 600 |
