Thickness 6mm 380V 50HZ Pvc Panel Making Machine
PVC Lamination Sheet Production Line
PVC Lamination Sheet Production Line(Artifical Marble Machine)

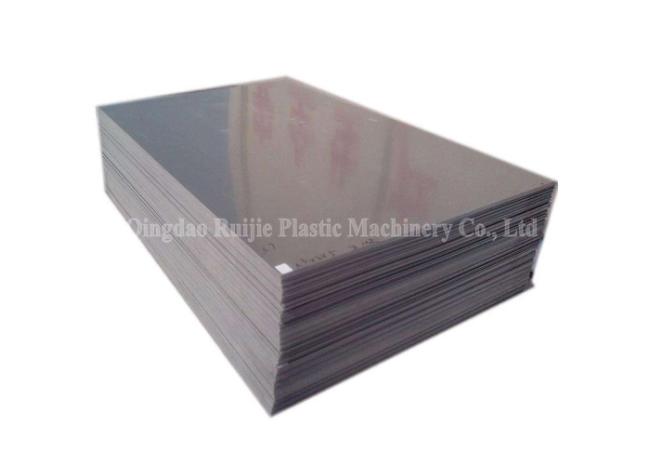

Product: PVC lamination sheet, PVC artifical marble board, UV board, stone plastic decorative panel,PVC imitation marble decorative board and decorative plate of carve patterns designs. According to customer needs to do different styles.
Main technical parameters
Suitable material : PVC
CaCo3 content:1:2~3
Apply for thickness: 2-6mm
Length and width:1220*2440mm
delivery time: 30 days after receiving deposit payment.
Dimension of the whole line: 23m(L)*1.8m(W)*2.2m(H, include feeding hopper)
Power consumption (actual): 50%-60% of the total install power. Install power : 160kw
Products capacity: 10-12 tons/24hours
Machine Composition
| No | Machine | Qty |
| 1 | Auto-feeder | one set |
| 2 | SJZS-80/156 twin screw extruder | one set |
| 3 | Mould | one set |
| 4 | 3-roller calender | one set |
| 5 | Temperature controller | one set |
| 6 | Cooling bracket | one set |
| 7 | Edge cutting unit | one set |
| 8 | Haul off unit | one set |
| 9 | Cutting unit | one set |
| 10 | Auto-stacker | one set |
| 11 | Optional auxiliary equipment | one set |
