Cylindrical ER14505 2500mAh 3.6V AA Lithium Battery 100mA
Bobbin Type Lithium Battery ER14505 3.6V 2500mAh Big Capacity for Life Jacket Light

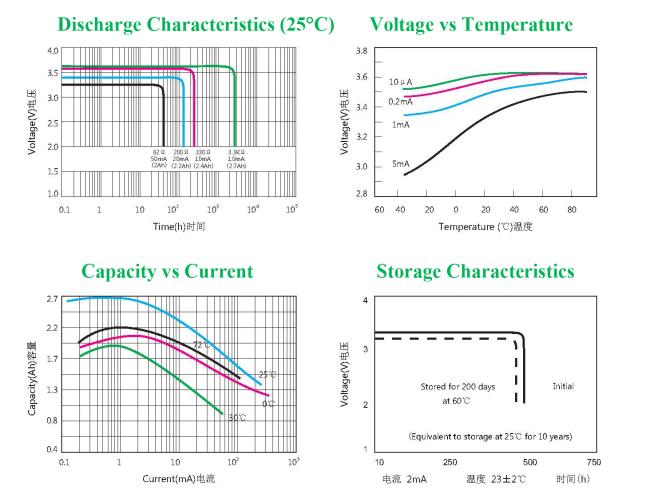

Feature of high Performance of Lithium Thionyl Chloride Battery
- Higer Capacity, the energy density can reach to 680wh/kg.
- High Voltage:open circuit voltage of single cell is 3.65V, operating voltage varies with the load from 3.3V~3.6V.
- Table Operating Voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the output capacity is still more than 90%.
- Wide Temperature Range: can be operated in the temperature of -60°C ~ +85°C.
- Long Storage Life: self-discharge rate is less than 1%.
- The shelf life is more than 10 years when stored in normal temperature, due to its hermetically sealed structure which reduces the leakage greatly.
Specification
| Nominal Capacity | 2500mAh |
| Nominal Voltage | 3.6V |
| Max. Constant Current | 100mA |
| Max. Pulse Current | 200mA |
| Weight | 19g |
| Volume | φ14.5*50.5mm |
| Workable Temperature | -60°C~+85°C |
Application
- SmartCard meter(water meter, ammeter, gas meter),
- Smoke & anti theft alarm, life jacket light, special cordless power tools
- Industry PC computer RAM, CMOS memory backup power sources
- Medical instruments, radio communications,
- Seismic equipement, CNC maching, taxi meters, telephone set,
- Underwater weapon, military communication transmitter-receive,
- Portable communication equipment, TPMS
2.This battery cannot replace alkaline batteries.
3.Although our battery has a 10-year shelf life (under special storage conditions), we advise customers not to store batteries for a long time due to the passivation characteristic. We highly recommend customer to use the battery within 3 months to receive optimal performance.
Product List
| Model | Size |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Continuous Current (mA) |
Max. Pulse Current (mA) |
Operation Temperature |
Dimension (mm) |
Weight (g) |
Data Sheet |
| ER14250 | 1/2AA | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | φ14.5*25 | 10 | |
| ER14335 | 2/3AA | 3.6 | 1650 | 75 | 150 | -60°C ~ 85°C | φ14.5*33.5 | 13 | |
| ER14505 | AA | 3.6 | 2500 | 100 | 200 | -60°C ~ 85°C | φ14.5*50.5 | 19 | |
| ER17335 | 2/3A | 3.6 | 2200 | 100 | 200 | -60°C ~ 85°C | φ17*33.5 | 19 | |
| ER17505 | A | 3.6 | 3500 | 100 | 200 | -60°C ~ 85°C | φ17.5*50.5 | 26 | |
| ER18505 | A | 3.6 | 4000 | 130 | 200 | -60°C ~ 85°C | φ18.5*50.5 | 32 | |
| ER26500 | C | 3.6 | 8500 | 200 | 400 | -60°C ~ 85°C | φ26.2*50 | 58 | |
| ER34615 | D | 3.6 | 19000 | 230 | 400 | -60°C ~ 85°C | φ34.2*61.5 | 107 | |
| ER261020 | CC | 3.6 | 17000 | 200 | 400 | -60°C ~ 85°C | φ26.2*100 | 100 | |
| ER341245 | DD | 3.6 | 35000 | 400 | 600 | -60°C ~ 85°C | φ34.2*125 | 220 | |
| ER9V | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | 26*17*48.8 | 40 |
Note:
1.Store the battery in cool and dry place where without direct sunlight and keep away from intense heat like fires or liquids.
2.This battery is NOT rechargeable.
3.This battery can be customized as you want in logo, color, package and battery packs with wires or pins or connectors, just send inquiry to us, and get your ideal battery.
