ER341245 Cylindrical Lithium Batteries
Bobbin Type Lithium Battery ER341245 3.6V 35000mAh Big Capacity for Life Jacket Light
Feature of high Performance of Lithium Thionyl Chloride Battery
- Higer Capacity, the energy density can reach to 680wh/kg.
- High Voltage:open circuit voltage of single cell is 3.65V, operating voltage varies with the load from 3.3V~3.6V.
- Table Operating Voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the output capacity is still more than 90%.
- Wide Temperature Range: can be operated in the temperature of -60°C ~ +85°C.
- Long Storage Life: self-discharge rate is less than 1%.
- The shelf life is more than 10 years when stored in normal temperature, due to its hermetically sealed structure which reduces the leakage greatly.
Specification
| Nominal Capacity | 35000mAh |
| Nominal Voltage | 3.6V |
| Max. Constant Current | 400mA |
| Max. Pulse Current | 600mA |
| Weight | 220g |
| Volume | φ34.2*125mm |
| Workable Temperature | -60°C~+85°C |
Application
- SmartCard meter(water meter, ammeter, gas meter),
- Smoke & anti theft alarm, life jacket light, special cordless power tools
- Industry PC computer RAM, CMOS memory backup power sources
- Medical instruments, radio communications,
- Seismic equipement, CNC maching, taxi meters, telephone set,
- Underwater weapon, military communication transmitter-receive,
- Portable communication equipment, TPMS
Our Service
- We provide various type single cell battery.
- Battery assembly supported,battery with solder tabs, wires and connectors,with PCM,battery pack customization available.
- OEM, ODM & Label service.
- Warranty: 1 year.
- Good after-sale service.

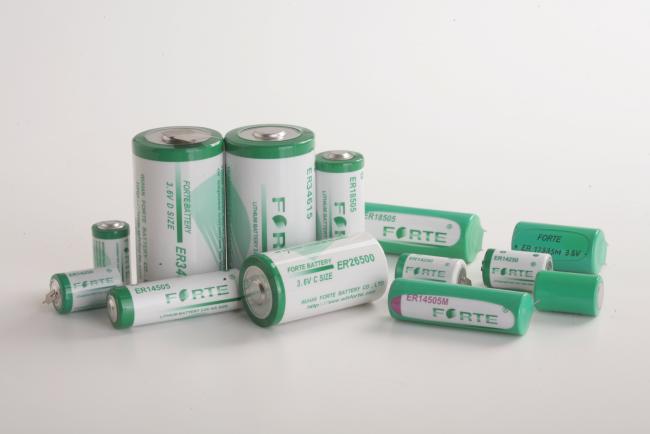

Product List
| Model | Size |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Continuous Current (mA) |
Max. Pulse Current (mA) |
Operation Temperature |
Dimension (mm) |
Weight (g) |
Data Sheet |
| ER14250 | 1/2AA | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | φ14.5*25 | 10 | |
| ER14335 | 2/3AA | 3.6 | 1650 | 75 | 150 | -60°C ~ 85°C | φ14.5*33.5 | 13 | |
| ER14505 | AA | 3.6 | 2500 | 100 | 200 | -60°C ~ 85°C | φ14.5*50.5 | 19 | |
| ER17335 | 2/3A | 3.6 | 2200 | 100 | 200 | -60°C ~ 85°C | φ17*33.5 | 19 | |
| ER17505 | A | 3.6 | 3500 | 100 | 200 | -60°C ~ 85°C | φ17.5*50.5 | 26 | |
| ER18505 | A | 3.6 | 4000 | 130 | 200 | -60°C ~ 85°C | φ18.5*50.5 | 32 | |
| ER26500 | C | 3.6 | 8500 | 200 | 400 | -60°C ~ 85°C | φ26.2*50 | 58 | |
| ER34615 | D | 3.6 | 19000 | 230 | 400 | -60°C ~ 85°C | φ34.2*61.5 | 107 | |
| ER261020 | CC | 3.6 | 17000 | 200 | 400 | -60°C ~ 85°C | φ26.2*100 | 100 | |
| ER341245 | DD | 3.6 | 35000 | 400 | 600 | -60°C ~ 85°C | φ34.2*125 | 220 | |
| ER9V | 3.6 | 1200 | 25 | 50 | -60°C ~ 85°C | 26*17*48.8 | 40 |
FAQ
Q: What is the MOQ?
A: MOQ 200pcs.
Q: Can I get a lower price if I order large quantities?
A: Yes, all the prices given are our lowest agency prices, discounts can be offered for large quantity.
Q: Can I get the pre-production sample?
A: Yes, we will send you pp sample, after you confirm, then we will start production.
Q: How long is the delivery time?
A: Normally 3-20 working days after receiving your payment.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
