Wall Mounted Solar PV System 48V LiFePO4 Battery 5.12KWH | 10.24KWH
Price:
Negotiate
MOQ:
1 unit
Delivery Time:
5-8 working days bulk order negotiate
Brand:
Fenigal
Product Description
Wall-mounted 48V LiFePO4 Battery 5.12KWH | 10.24KWH

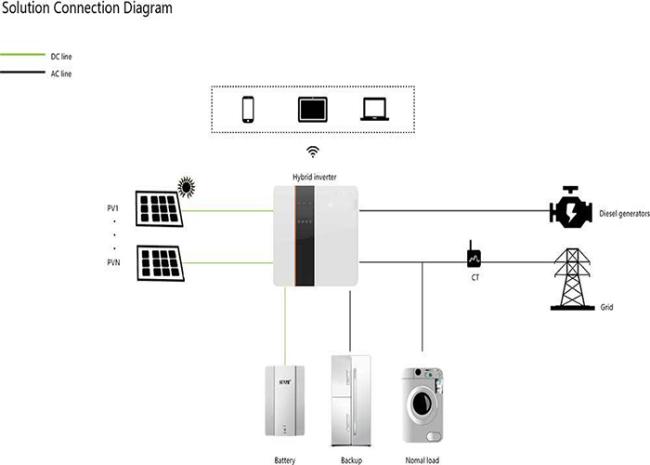

Fenigal high quality wall-mounted 48V 5KWH and 10KWH lifepo4 bess battery cabinet with battery management system(BMS) ,compatible with our single phase hybrid solar inverter 5KW/6KW, 8kw split phase hybrid inverter and 10KW hybrid inverter for residential energy storage projects. Easy to install and dispatch, and could be used in parallel.
Flexible configuration
Scalable battery design for easy expansion, Max. 6pcs in parallel
Safe and reliable
Lithium Iron Phosphate (LFP) Cell; life up to 10 years
Convenient operation and maintenance
Easy connection, saving installation time and cost
Abundant configuration
Compatible to residential low battery voltage inverter, and 48V off grid inverter
Compatible with CAN / RS485 communication interface
Compatible with CAN / RS485 communication interface
Benefit
● life up to 10 years
● Highly cost-effective
● Support mainstream hybrid inverters
● Capacity can be flexibly configured
● Support 7*24 remote service
● Highly cost-effective
● Support mainstream hybrid inverters
● Capacity can be flexibly configured
● Support 7*24 remote service
| model | LFP4805 | LFP4810 |
| Performance | ||
| Battery capacity(KWH) | 5.12KWH | 10.24KWH |
| Battery type | Iithium-iron phosphate (LiFePO4) | |
| Nominal Voltage(V) | 51.2V | |
| Depth of discharge(DOD) | 80% | |
| Design life | ＞10years(25℃/77F) | |
| Charge limit voltage(V) | 57.6V | |
| Shipping voltage requirements(V) | 50V-53V | |
| Discharge cut-off voltage(V) | 43.2V | |
| Standard charging current(A) | 30A | 30A |
| Standard discharging current(A) | 30A | 30A |
| Max. charging current(A) | 100A | 100A |
| Max. discharging current(A) | 100A | 100A |
| Scalability | Max. 6 strings in parallel | |
| Compatible hybrid inverters | SNE5K-D1/SNE6K-D1/SNE8K-DA | |
| Protection function | ||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | |
| Display and Communication | ||
| Display | LED indicatior | |
| Communication | CAN/RS485/RS232 | |
| General Specification | ||
| Domension(H*W*D) | 580*415*150MM | 680*485*200MM |
| Weight | 55KG | 92KG |
| Installation | Wall Mount | |
| Operating Temperature | -20℃-+60℃ | |
| Max. operating altitude | 4,000m(Derating above 2,000m) | |
| Protection degree | IP21, indoor installation | |
| Relative humidity | 5%-75% | |
| Cooling | Natural cooling | |
| Noise emission | ＜29db | |
| Certificate | CE, UN38.3 | |
Application
● Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Electricity
● Field Power Supply
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Electricity
● Field Power Supply
