PAL60 NTSC 3.58 SECAM To PAL MINI TV System Audio Video Converter

MINI TV system Converter

1.0 Introduction

The MINI TV System converter designed for the single-format video equipment (such as NTSC TV sets, projectors, PDP, projection, etc.) to achieve other format which show on TV. It digital transfer device using the most advanced all-digital way on TV and video format for processing, powerful functional and superior performance of the feature from many kinds of video signal formats (Including PAL, PAL60, NTSC3.58, NTSC4.43, SECAM) unified converted into PAL or NTSC standard signal output (as required by the user settings).

2.0 Features

1. No need to install drivers, portable, flexible, plug and play.

2. Provides advanced signal processing with great precision, colors, resolutions, and details;

3. Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats input.

4. Support PAL, NTSC standard TV format output.

3.0 SPECIFICATIONS

1. Input ports: 1xRCA (Yellow, White, Red).

2. Output ports: 1xRCA (Yellow, White, Red).

3. Dimensions (mm): 72(D)x 55(W)x20(H)

4. Wight (g): 40g

5. Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N.

6. Composite output: PAL, NTSC.

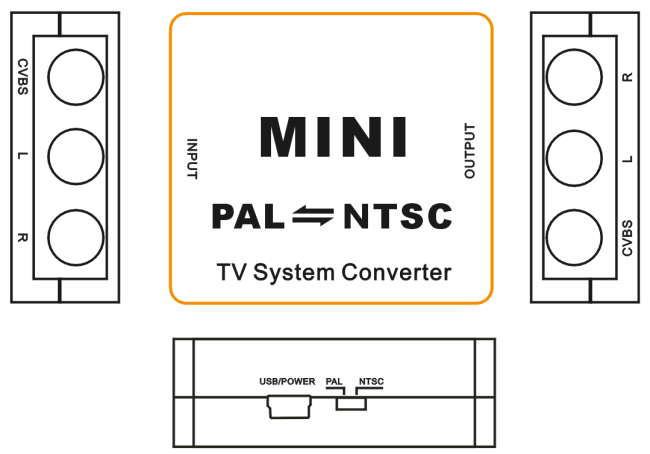

4.0 nterface specifications

CVBS IN--------------- CVBS Input

USB ---------------------USB/5V Input

PAL/NTSC--------------PAL/NTSC SWITCH

CVBS OUT-------------CVBS Output

L/R------------------------Audio Input and output

5.0 Accessories:

USB Cable------------------------------------1 PCS

DC/5V POWER -----------------------------1 PCS

User Manual (EN) --------------------------1 PCS

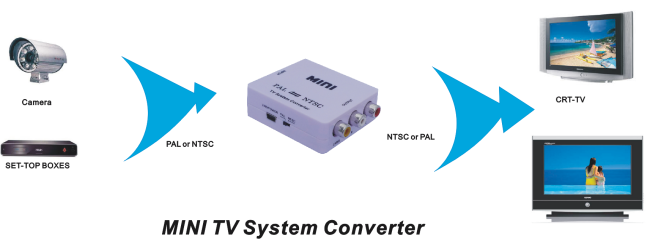

6.0 CONNECTION DIAGRAM
