OM4 Duplex Optical Fiber Patch Cord Violet White Color 850nm LSZH
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

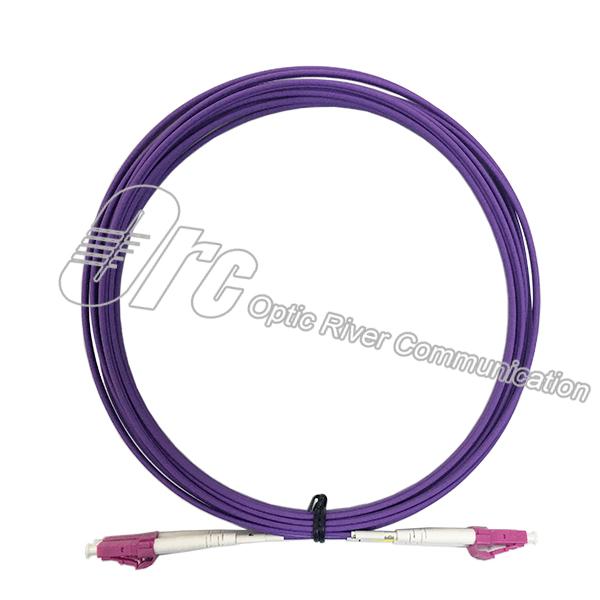

OM4 Duplex optical fiber patch cord violet figure 8 LSZH
Description
OM4 10G-550 LC-LC fiber patch cable is ready for deployment in any 50/125 network. 50/125 networks support longer cable distances with lower loss than 62.5/125. This multimode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. It has a magenta LSZH jacket CPR certified and UL listed.
Product information
| Connector type | LC-LC | Polish type | UPC |
| Fiber number | 1 | Fiber mode | OM4 |
| Wavelength | 850nm | Connector material | Metal housing and plastic boot |
| Insertion loss | <=0.3dB | Max transmission distance | 550M |
| Fiber grade | Bend insensitive | Data rate | 10GB @ 850nm |
| Cable jacket | LSZH | Cable diameter | 2.0mm zipcord |
| Polarity | A(Tx)-B(Rx) | Operating temperature | -20-+60℃ |
Features
◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
◆ Ceramic ferrules provide precise alignment
◆ Ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications
◆ Connectors utilize a UPC polish
◆ Endface inspection, IL/RL testing and 3D interferometer testing
Applications
◆ Used to connect patch panels and/or network devices that utilize duplex LC-LC style connectors and require OM4 50/125 multimode cabling
◆ Optical communication system
◆ Optical fiber CATV
◆ FTTX+LAN
◆ Telecommunication
Drawing and cable length tolerance
| Length Tolerance | |
| L<1M | ±0.08M |
| 1M≤L<20M | ±0.10M |
| L≥20M | ±1%M |
Standard package
