SN To SN Single Jacket Duplex Patch Cord For 400G Transceiver

4 Duplex Connectors SN - SN Single Jacket Duplex Patch Cord For 400G Transceiver

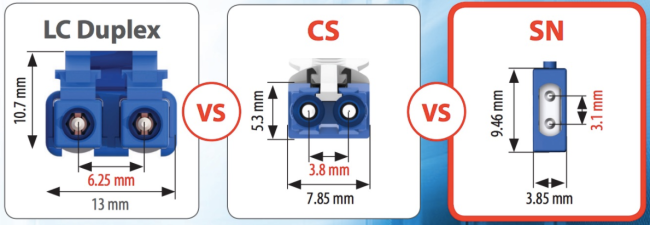

Delivering higher density than CS connectors, SN adapters and cable assemblies accommodate 4 duplex connectors to provide an efficient and reliable replacement for MPO connectors in quad fiber applications and are optimized to support next-generation 400G QSFP-DD and OSFP transceivers.

Features and advantages of SN connector

1, 2 x LC ferrules per connector housing

Delivers proven 1.25mm ferrule technology and LC level performance in a dramatically reduced footprint.

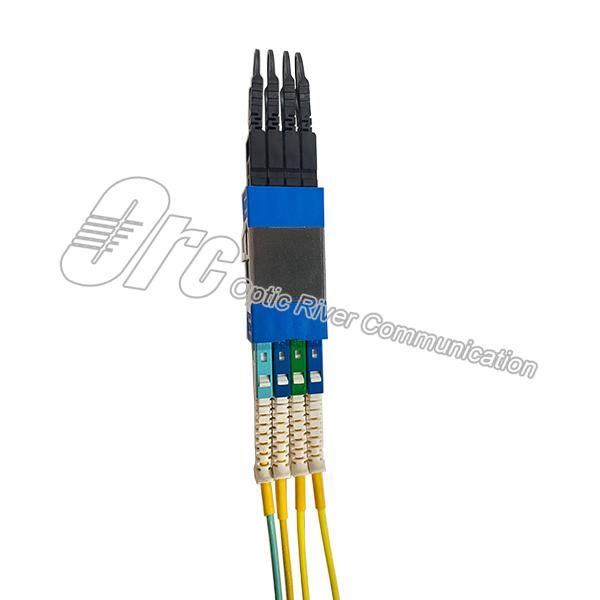

2, 4 x SN Connectors in QSFP footprint; 2 x SN Connectors in SFP footprint

Provides more-efficient, lower-cost alternative to MPO connectors with increased reliability. Provides increased connector density over CS connectors.

3, Optimized for 4 x 100GbE

Supports next-generation 400G QSFP-DD and OSFP transceivers.

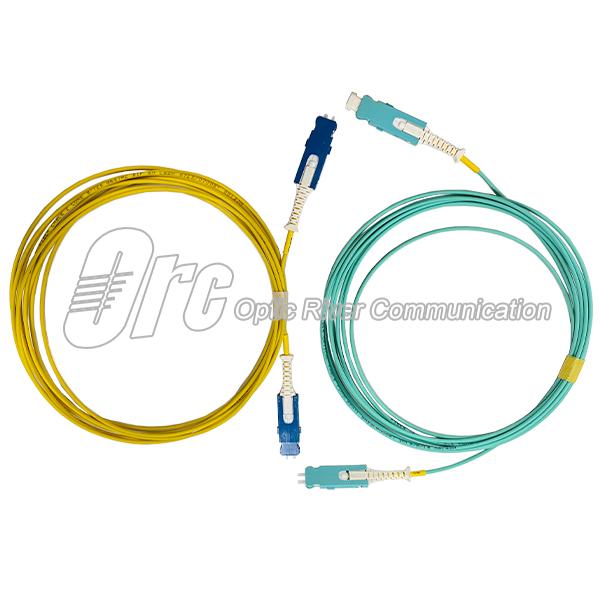

4, SN Cable Assembly

Supports a 1.60mm jacketed cable.

5, Push/pull boot design

Provides grab boot to mate and de-mate connector. Eliminates interference with TxRx pull tab. Allows for high-density layout.

6, SN Connector

The SN connector provides the ability to do individual breakout at the transceiver, plus allows direct cross connection without the need for additional breakout cables or fiber shuffles that can add up to 4 fiber connections into the overall link. Additional fiber connections add increased insertion loss, create points of failure and increase overall cost.
