160 Series 12.3mm Height T Slot Profile / Aluminum T Extrusion Profiles
160 series T-slot aluminium extrusion profile and others have good mechanical properties, high connection strength and high bearing capacity; The surface is beautiful and generous, anti-corrosion and other characteristics. The user can design freely according to the actual needs, and install the perfect mechanical device. High precision parts make assembly process simple, reduce assembly difficulty, shorten workload, improve production efficiency.
160*160 Aluminium Extrusion T-Slot Profile
Specification
| Slot | 8.2 mm |
| Weight | 18.69 kg/m |
| Mass of Inertia | lx: 1988.54 cm4 ly: 1988.54 cm4 |
| Section Modulus | zx: 257.13 cm3 zy: 257.13 cm3 |
| height | 12.3 mm |
| 4 marginal holes | φ6.8 mm |
| Wall thickness | 4.5 mm |
| Code | WF-032 |
160*160W Aluminium Extrusion T-Slot Profile
Specification:
| Code | WF-032W |
| Slot | 8.2 mm |
| Weight | 22.04 kg/m |
| Mass of Inertia | lx: 2264.46 cm4 ly: 2264.46 cm4 |
| Section Modulus | zx: 280.40 cm3 zy: 280.40 cm3 |
| height | 12.3 mm |
| 4 marginal holes | φ10 mm |
| Wall thickness | 4.5 mm |

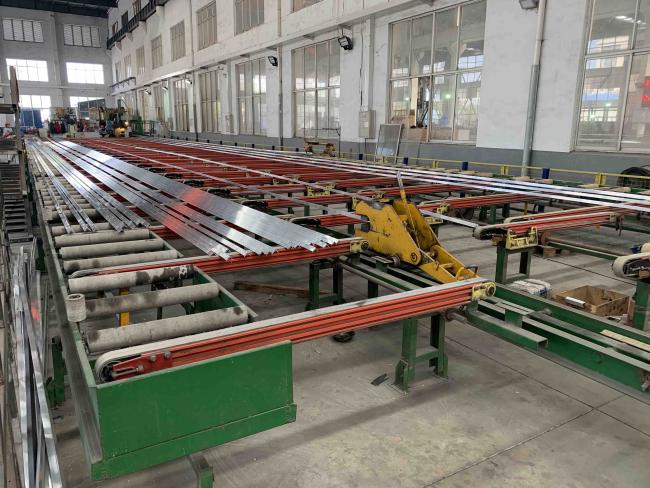

We have designed produced two types of heavy-duty 160 series T-slot aluminum extrusion profile, one is WF-32(weight: 18.69kg/m), and the other is WF-032W(weight: 22.04kg/m). Obviously, the main difference between them is the wall thickness.
Usually, it would be chosen to make equipment rack or large-scale machine beams. It can connect with 80 Series Aluminum Extrusion Profiles.
