120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
120 series T-slot aluminium extrusion profile and others have good mechanical properties, high connection strength and high bearing capacity; The surface is beautiful and generous, anti-corrosion and other characteristics. The user can design freely according to the actual needs, and install the perfect mechanical device. High precision parts make assembly process simple, reduce assembly difficulty, shorten workload, improve production efficiency.
| Code | WF-033 |
| Slot | 8.2 mm |
| Weight | 16.16 kg/m |
| Mass of Inertia | lx: 781.00 cm4 ly: 781.00 cm4 |
| Section Modulus | zx: 130.16 cm3 zy: 130.16 cm3 |
| Height | 12.5 mm |
| Central hole | φ56 mm |
| 4 marginal holes | φ12.5 mm |
| Wall thickness | 4.5 mm |
| Section size | 120 mm × 120 mm |
WF-033 extrusion is the second largest profile in the existing products. There is only one type in 120 Series T-Slot Aluminium Extrusion Profile. If you want to order please be sure to get in touch with us, we will inform the matters needing attention.

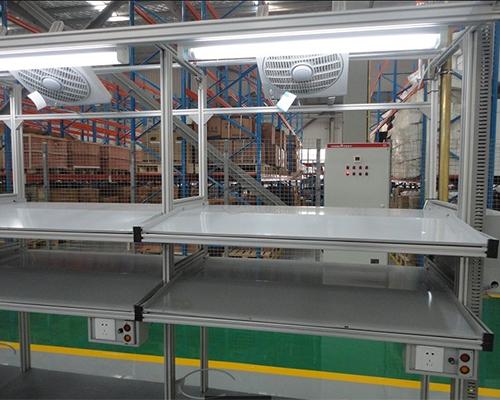

Large-sized and heavy-duty WF-033 profile usually are applied to warehouse shelf, industry step ladder, large operation station and other special areas.
