100 Series 8.2mm Extruded Aluminium T Slot Profile For Building Blocks
100 Series T-Slot Aluminium Extrusion covers WF034-S8 and WF034-S10 two types of aluminium profiles. They have heavy duty.
WF034-S8 Aluminium Extrusion T-Slot Profile
Specification
| Code | WF-034-S8 |
| Slot | 8.2 mm |
| Weight | 12.00 kg/m |
| Mass of Inertia | lx: 447.20 cm4 ly: 447.20 cm4 |
| Section Modulus | zx: 89.45 cm3 zy: 89.45 cm3 |
| Height | 12.3 mm |
| Hole | φ12 mm |
| Wall thickness | 6.3 mm |
We have designed two types of heavy-duty 100 series T-slot aluminium extrusion profile, one is WF-034-S8 (weight: 12.0 kg/m), and the other is WF-034-S10 (weight: 11.48 kg/m). Obviously, the main difference between them is the T-slot dimension.
T-slot of WF-034-S8 profile is 8.2 mm when choosing accessories or fasteners, M8 is suitable. On the other hand, it can be connected with 50 series profile and other parts such as a handle, end connector, and caster etc. It widely used for building blocks, dry room, conveyor, CNC and other frameworks.
WF034-S10 Aluminium Extrusion T-Slot Profile
Specification
| Code | WF-034-S10 |
| Slot | 10.2 mm |
| Weight | 11.48 kg/m |
| Mass of Inertia | lx: 397.83 cm4 ly: 397.83 cm4 |
| Section Modulus | zx: 81.36 cm3 zy: 81.36 cm3 |
| Height | 12.3 mm |
| Hole | φ10.2 mm |
| Wall thickness | 6.0 mm |
We have designed two types of heavy-duty 100 series T-slot aluminium extrusion profile, one is WF-034-S8 (weight: 12.0 kg/m), and the other is WF-034-S10 (weight: 11.48 kg/m). Obviously, the main difference between them is the T-slot dimension.
T-slot of WF-034-S10 profile is 10.2 mm, ideal for heavy-duty applications where added strength and additional T-slot are a must, when choosing accessories or fasteners, M10 is suitable. On the other hand, it can be connected with 50 series profile and other parts such as handle, end connector, and caster etc. It widely used for building blocks, clean room, conveyor, CNC and other frameworks.

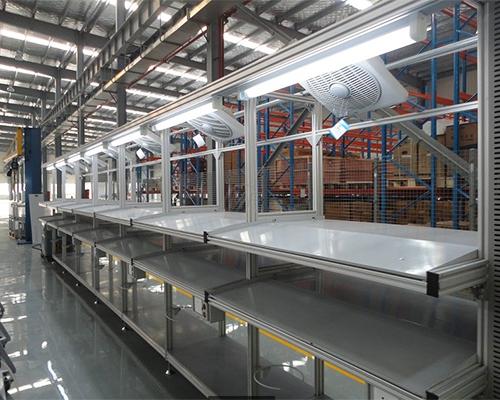

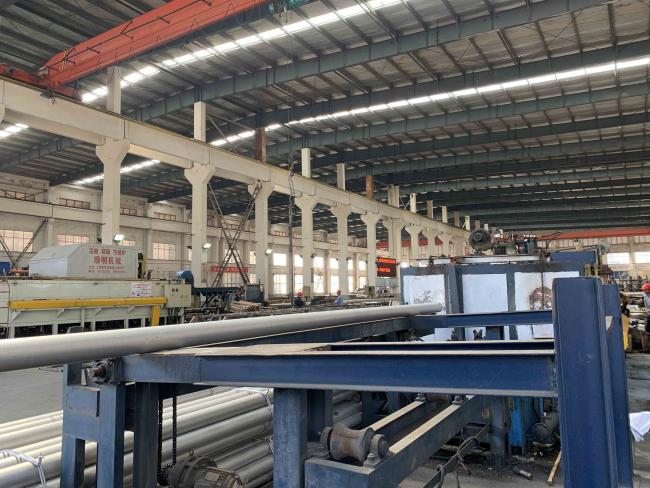

WANGFA T-slot aluminium extrusion profile system has applied to machine building, aluminium framework, automation industrial, material handling, belt conveyor system and machine safety guarding and enclosures. Modular aluminium structures offer high flexibility and functionality combined with visual appeal and cleanliness of the anodized surface.
T-slot aluminium profiles offer several benefits. The shape of the profile creates modularity, meaning it is easily assembled and reassembled to conform to evolving needs.
The T-slot also provides the ability to add connections and join profiles to captive ends. This allows you to change your design without having to
start from scratch and also enables easy expansion and retraction of your build for modifications down the road.
