90 Series 10.2 Mm Width Extruded Aluminum T Slot Profile WF-035
90 Series T-Slot Aluminium Extrusion covers WF-035 and WF-035W two types of aluminium profiles. They have a certain bearing capacity.
WF-035 Aluminium Extrusion T-Slot Profile
| Code | WF-035 |
| Slot Width | 10.2 mm |
| Weight | 6.20 kg/m |
| Mass of Inertia | lx: 172.14 cm4 ly: 172.14 cm4 |
| Section Modulus | zx: 40.76 cm3 zy: 40.76 cm3 |
| Height | 12.3 mm |
| Hole | φ10.2 mm |
| Wall thickness | 2.0 mm |
There are only two types of 90 series T-slot aluminium extrusion profile, one is light duty WF-035 (comparatively speaking), and the other is heavy duty WF-035W.
WF-035 profile can be connected with 45 series, so the fasteners and accessories are universal.

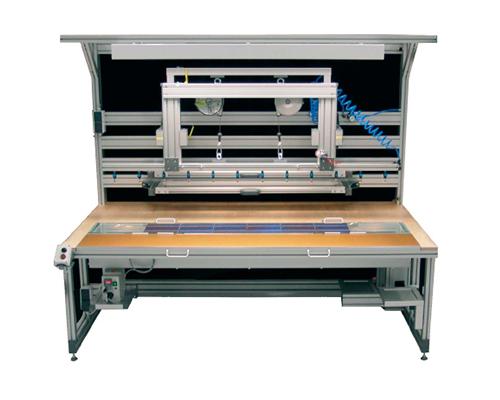

It usually used for safety-guarding, testing and inspection services to workbenches, machine-frames, conveyor, CNC and linear systems.
WF-035W Aluminium Extrusion T-Slot Profile
| Code | WF-035W |
| Slot Width | 10.2 mm |
| Weight | 6.98 kg/m |
| Mass of Inertia | lx: 200.90 cm4 ly: 200.90 cm4 |
| Section Modulus | zx: 48.15 cm3 zy: 48.15 cm3 |
| Height | 12.3 mm |
| Hole | φ10.2 mm |
| Wall thickness | 2.6 mm |
There are only two types of 90 series T-slot aluminium extrusion profile, one is light duty WF-035 (comparatively speaking), and the other is heavy duty WF-035W.
WF-035W profile is heavy duty with high tension and strength that can be connected with 45 series, so the fasteners and accessories are universal, centre area can be used as a conduit for airlines, or as a pressurized air manifold. You should note that the bearing capacity of the framework, which involves matching fittings and connection mode.
It usually used for safety-guarding, testing and inspection services to workbenches, machine-frames, conveyor, CNC and linear systems.
