80 Series Wall Thickness 2.2Mm T Slot Aluminum Framing For Safety Guards
80 Series T-Slot Aluminium Extrusion covers S-8-80×80, S-8-80×80W, S-8-80×80X, S-8-88×40, S-8-80×120 and S-8-80×160 aluminium profiles.

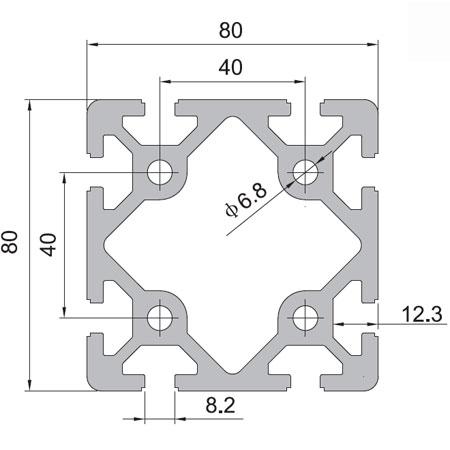

80*80 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-80×80 |
| Slot Width | 8.2 mm |
| Weight | 5.32 kg/m |
| Mass of Inertia | lx: 134.08 cm4 ly: 134.08 cm4 |
| Section Modulus | zx: 33.52 cm3 zy: 33.52 cm3 |
| T-slot height | 12.3 mm |
| Section size | 80 mm × 80 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.5 mm |
| Wall Thickness | 2.2 mm |
S8-8080 profile with T-slot 8.2 mm in 80 series T-slot aluminium extrusion profile; it has 4 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. It’s usually used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems with high-quality visual appearance.

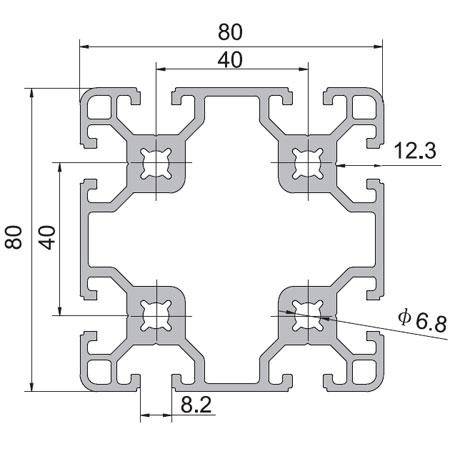

80*80W Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-80×80W |
| Slot Width | 8.2 mm |
| Weight | 7.06 kg/m |
| Mass of Inertia | lx: 171.20 cm4 ly: 171.20 cm4 |
| Section Modulus | zx: 42.80 cm3 zy: 42.80 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 3.0 mm |
S8-8080W profile with fixing T-slot 8.2 mm is heavy-duty; it has 4 holes with φ6.8 mm and minimum engineering effort. It’s usually used for a massive range of applications such as workstations, conveyors, and other multi-axis positioning systems with high-quality visual appearance.

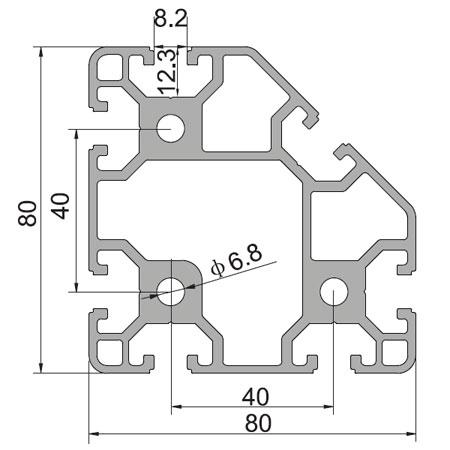

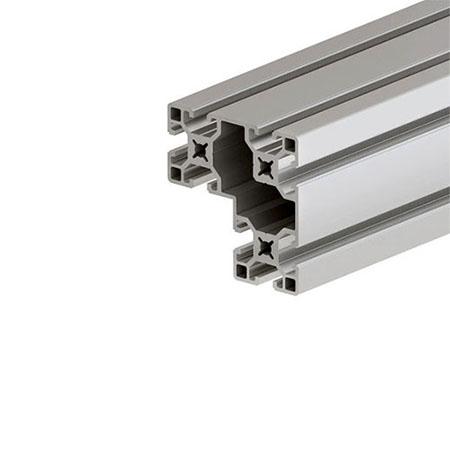

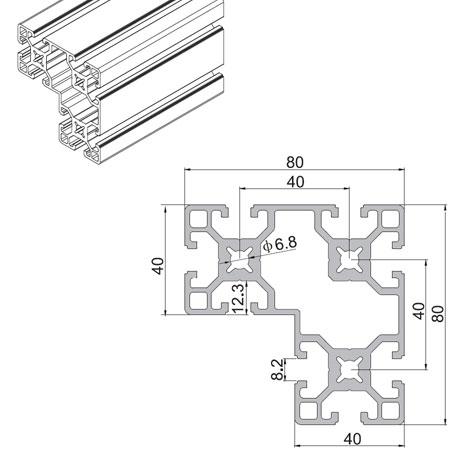

80*80X Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-80×80X |
| Slot Width | 8.2 mm |
| Weight | 4.98 kg/m |
| Mass of Inertia | 116.72 cm4 ly: 116.72 cm4 |
| Section Modulus | zx: 28.73 cm3 zy: 28.73 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.2 mm |
S8-8080X profile is designed by our technical and named, with fixing T-slot 8.2 mm is heavy-duty; it has 3 holes with φ6.8 mm and European standard profile that can be assembled well with others.
It’s usually applied to the edge of framework and used for a massive range of applications such as workstations, conveyors, and other multi-axis positioning systems with high-quality visual appearance. It can connect well with other 80 series T-slot aluminium extrusion profile.

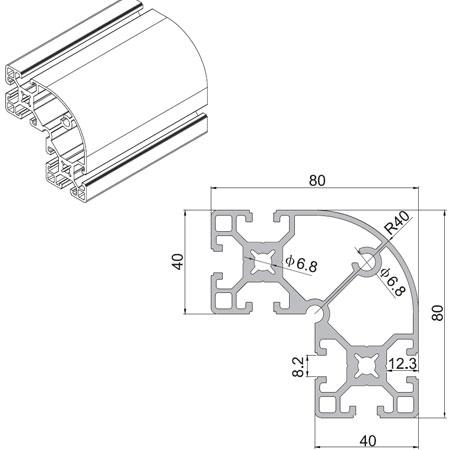

88*40 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-88×40 |
| Slot Width | 8.2 mm |
| Weight | 4.01 kg/m |
| Mass of Inertia | lx: 72.97 cm4 ly: 72.97 cm4 |
| Section Modulus | zx: 18.74 cm3 zy: 18.74 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.0 mm |
S8-8840 profile is designed by our technical and named, it has deflection angle with fixing T-slot 8.2 mm and 3 central holes φ6.8 mm that accords with European standard.
It’s usually applied to the edge of framework and used for a massive range of applications such as workstations, conveyor systems, Racking, safety guards and other multi-axis positioning systems with high-quality visual appearance. It can connect well with other 80 series T-slot aluminium extrusion profile.
88*40Z Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-88×40Z |
| Slot Width | 8.2 mm |
| Weight | 4.44 kg/m |
| Mass of Inertia | lx: 85.03 cm4 ly: 85.03 cm4 |
| Section Modulus | zx: 20.55 cm3 zy: 20.55 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 3.0 mm |

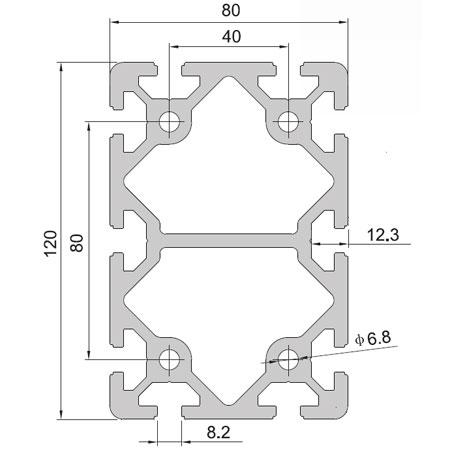

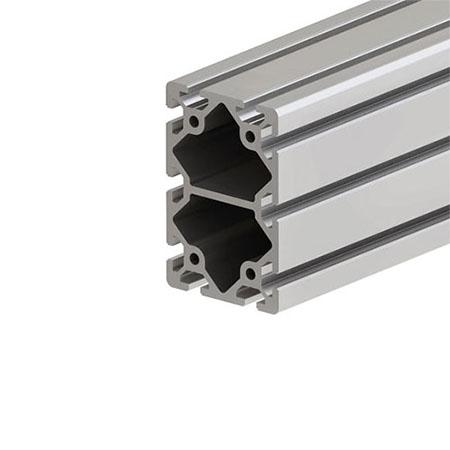

80*120 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-80×120 |
| Slot Width | 8.2 mm |
| Weight | 9.74 kg/m |
| Mass of Inertia | lx: 501.70 cm4 ly: 243.73 cm4 |
| Section Modulus | zx: 91.03 cm3 zy: 60.71 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 4.0 mm |
S8-80120 profile is special that has high tension stress and ultra-high strength. The weight is 9.74 kg/m. It’s widely used for a massive range of applications such as automobiles, factory automation, module structure and other special areas with high-quality visual appearance.

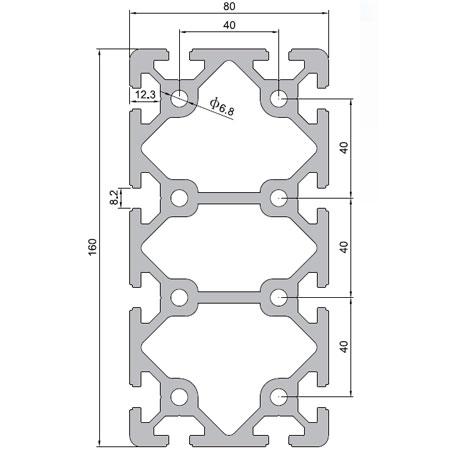

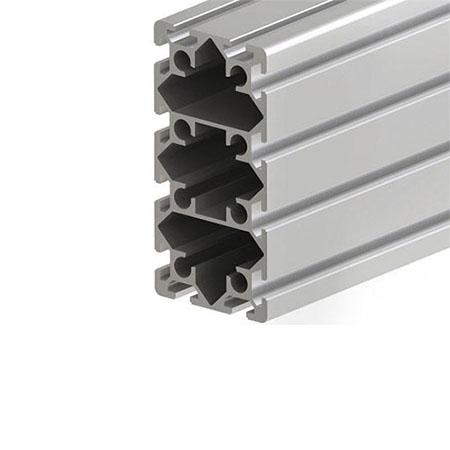

S8-80*160 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-80×160 |
| Slot Width | 8.2 mm |
| Weight | 13.28 kg/m |
| Mass of Inertia | lx: 1100.71 cm4 ly: 325.77 cm4 |
| Section Modulus | zx: 126.48 cm3 zy: 73.56 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 3.0 mm |

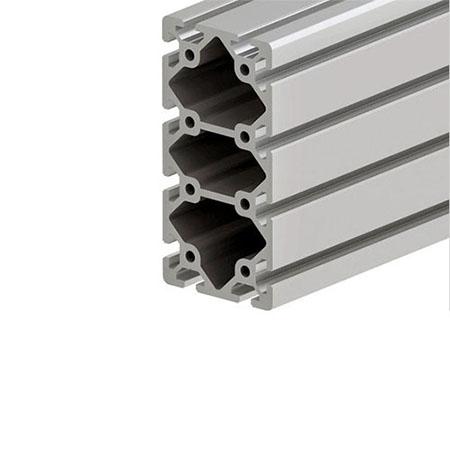

S8-80160 profile is one of special that has high tension stress and ultra-high strength with the heavy wall thickness. The weight is 13.28 kg/m. It’s widely used for a massive range of applications such as automobiles, factory automation, module structure, CNC and other special areas with high-quality visual appearance.

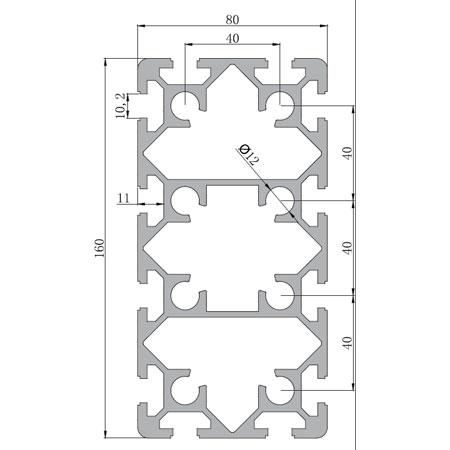

S10-80*160 Aluminium Extrusion T-Slot Profile
Specification
| Code | S10-80×160 |
| Slot Width | 10.2 mm |
| Weight | 10.37 kg/m |
| Mass of Inertia | lx: 916.30 cm4 ly: 270.86 cm4 |
| Section Modulus | zx: 109.73 cm3 zy: 66.44 cm3 |
| T-slot height | 11 mm |
| Hole | φ12 mm |
| Thickness of diagonal bar | 2.4 mm |
S10-80160 profile is little difference with S8-80160, T-slot is 10.2 that can be tapped in M12 screws, the strength and bearing capacity is little less than S8-80160 because of the thin wall. It’s widely used for automobiles, factory automation, module structure, CNC and other special areas with high-quality visual appearance.
