60 Series 9.2Mm Height T Slot Profile Aluminium T Track Extrusions
60 Series T-Slot Aluminium Extrusion covers S-8-60×60, S-10-60×60, S-8-60×90 and S-8-66×30 aluminium profiles.

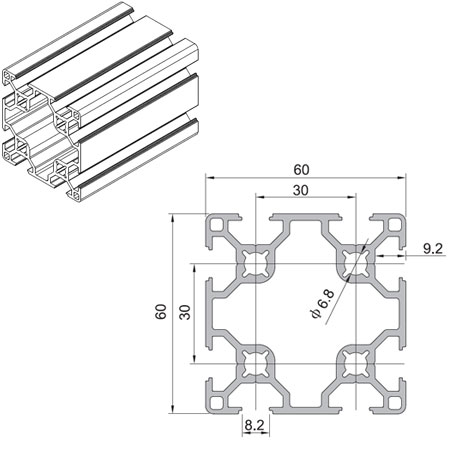

S8-60*60 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-60×60 |
| Weight | 2.80 kg/m |
| Mass of Inertia | lx: 32.40 cm4 ly: 32.40 cm4 |
| Section Modulus | zx: 10.80 cm3 zy: 10.80 cm3 |
| T-slot height | 9.2 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.2 mm |
| Wall Thickness | 2.2 mm |

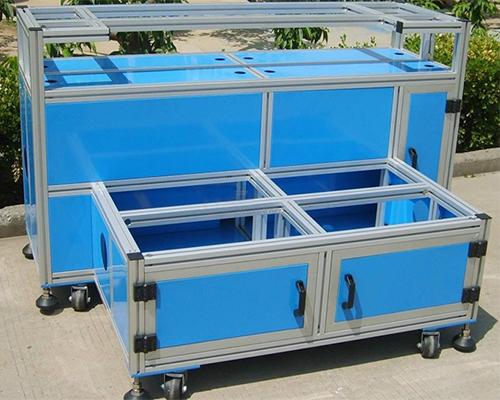

S8-6060 profile’s slot is 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 4 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. The system will be flexible and used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems.

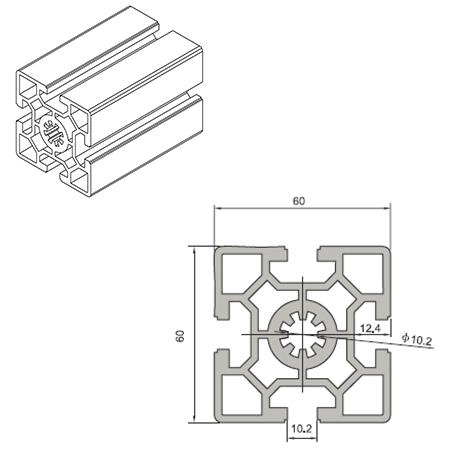

S10-60*60 Aluminium Extrusion T-Slot Profile
Specification
| Code | S10-60×60 |
| Slot Width | 10.2 mm |
| Weight | 4.20 kg/m |
| Mass of Inertia | lx: 45.02 cm4 ly: 45.02 cm4 |
| Section Modulus | zx: 15.00 cm3 zy: 15.00 cm3 |
| T-slot height | 12.4 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 2.5 mm |
S10-6060 profile is little difference with S8-6060, full slots are 10.2 mm in 60 series T-slot aluminium extrusion profiles; only one central hole that can be tapped in M10 screws, general purpose profile suitable for medium-duty and heavy-duty applications. The system will be flexible and used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems.

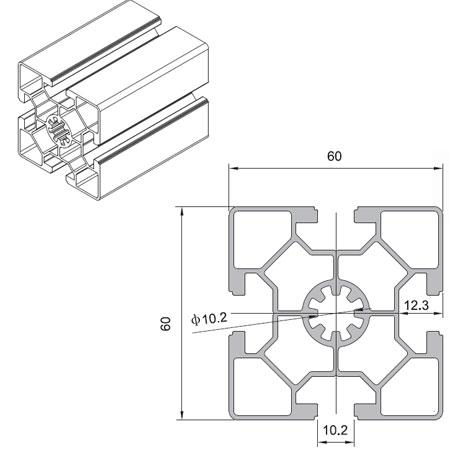

60*60L Aluminium Extrusion T-Slot Profile
Specification
| Code | S10-60×60L |
| Slot Width | 10.2 mm |
| Weight | 2.80 kg/m |
| Mass of Inertia | lx: 29.20 cm4 ly: 29.20 cm4 |
| Section Modulus | zx: 9.73 cm3 zy: 9.73 cm3 |
| T-slot height | 12.3 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 1.3 mm |

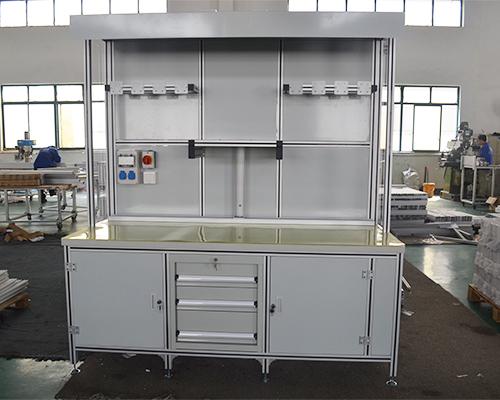

S10-6060L is the light profile with the thickness of diagonal bar only 1.3 mm which determines the tension & strength of profile is small. Full slots are 10.2 mm; only one central hole that can be tapped in M10 screws. The system will be flexible and used for a massive range of applications such as workbenches & workstations, Media/LED screen supporting structures, bike, smoking & sports shelters, and other multi-axis positioning systems.

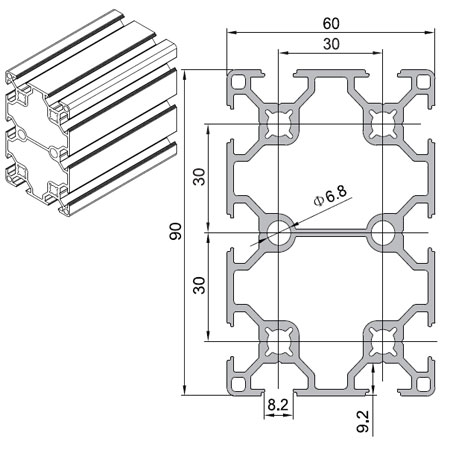

60*90 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-60×90 |
| Slot Width | 8.2 mm |
| Weight | 3.92 kg/m |
| Mass of Inertia | lx: 102.77 cm4 ly: 49.85 cm4 |
| Section Modulus | zx: 22.86 cm3 zy: 16.61 cm3 |
| T-slot height | 9.2 mm |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.2 mm |
| Section size | 60 mm × 90 mm |
| Wall Thickness | 2.2 mm |
S8-6090 profile’s slot is 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 6 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. The system will be flexible and for heavy-duty applications such as machine frames, heavy-duty supports, cantilevered gantries, safety guards, workstations, conveyors, and another multi-axis positioning.

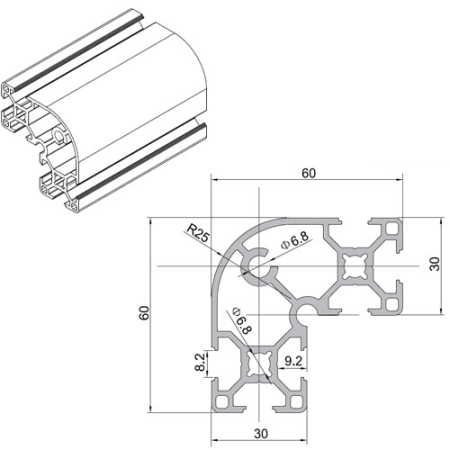

66*30 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-66×30 |
| Slot Width | 8.2 mm |
| Weight | 2.31 kg/m |
| Mass of Inertia | lx: 23.26 cm4 ly: 23.26 cm4 |
| Section Modulus | zx: 8.85 cm3 zy: 8.85 cm3 |
| T-slot height | 9.2 mm |
| Section size | 60 mm × 60 mm, R=25° |
| Hole | φ6.8 mm |
| Thickness of diagonal bar | 2.0 mm |
| Wall Thickness | 2.0 mm |
S8-6630 is angle profile with T-slot 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 4 holes with φ6.8 mm. Main features: L-shape allows for easy attachment of racks and shelves, Using for enclosures and display cases. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts.
It’s usually used for a boom or corner range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems with high-quality visual appearance.
