50 Series 4.2mm Wall Thickness T Slot Profile Aluminum T Channel Extrusion 3.20kg/m

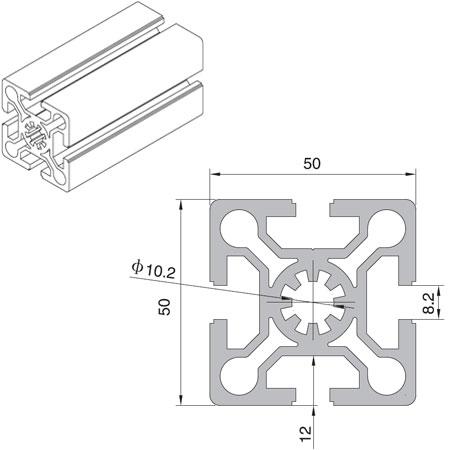

S8-50*50 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-50×50 |
| Slot Width | 8.2 mm |
| Weight | 3.20 kg/m |
| Mass of Inertia | lx: 25.81 cm4 ly: 25.81 cm4 |
| Section Modulus | zx: 10.32 cm3 zy: 10.32 cm3 |
| T-slot height | 12.0 mm |
| Section size | 50 mm × 50 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 1.9 mm |
| Wall Thickness | 4.2 mm |

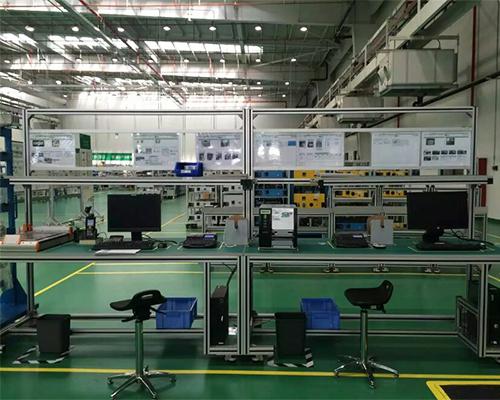

S8-5050 profile’s slot is 8.2 mm; it can be easily connected with 20 series and 30 series profile, large section size and extraordinarily flexible, general purpose, the heavy-duty profile for strong, rugged performance. Used for medium and large-sized frameworks such as building blocks, automation, work benches, safety guarding, display cabinets & stands and conveyors etc. M8 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

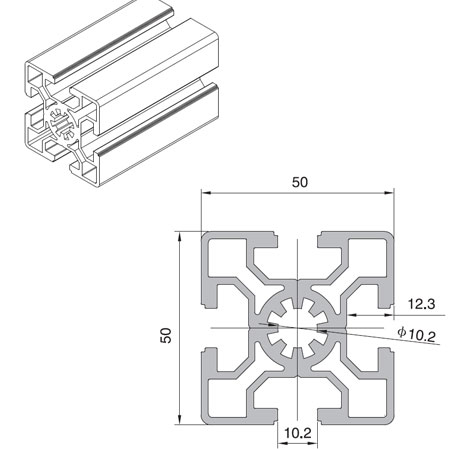

S10-50*50 Aluminium Extrusion T-Slot Profile
Specification
| Code | S10-50×50 |
| Slot Width | 10.2 mm |
| Weight | 3.20 kg/m |
| Mass of Inertia | lx: 20.34 cm4 ly: 20.34 cm4 |
| Section Modulus | zx: 8.14 cm3 zy: 8.14 cm3 |
| T-slot height | 12.3 mm |
| Section size | 50 mm × 50 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 1.9 mm |
| Wall Thickness | 4.2 mm |
S10-5050 profile’s slot is 10.2 mm; it can be easily connected with 40 series, 45 series profile, large section size and extraordinarily flexible. Used for medium and large-sized frameworks such as building blocks, automation, work benches, safety guarding, display cabinets & stands and conveyors etc. M10 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

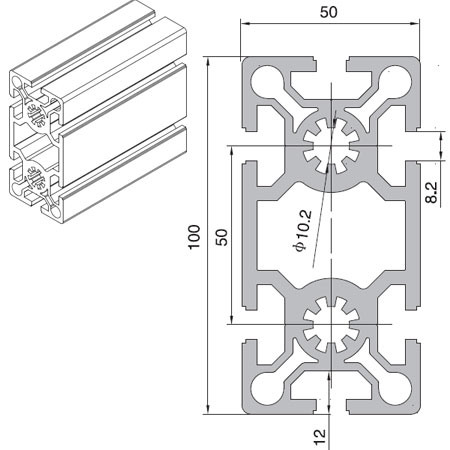

S8-50*100 Aluminium Extrusion T-Slot Profile
Specification
| Code | S8-50×100 |
| Slot Width | 8.2 mm |
| Weight | 6.08 kg/m |
| Mass of Inertia | lx: 191.09 cm4 ly: 51.21 cm4 |
| Section Modulus | zx: 38.22 cm3 zy: 20.48 cm3 |
| T-slot height | 12.0 mm |
| Section size | 50 mm × 100 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 1.9 mm |
| Wall Thickness | 1.9 mm |
S8-50100 profile’s slot is 8.2 mm; it can be easily connected with 20 series, 30 series and s8-5050 profile, large section size and extraordinarily flexible. M8 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

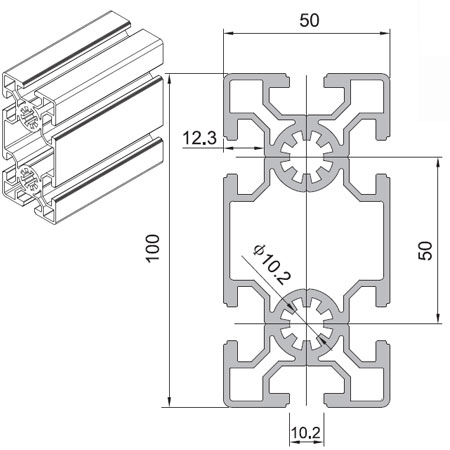

S10-50*100 Aluminium Extrusion T-Slot Profile
Specification
| Code | S10-50×100 |
| Slot Width | 10.2 mm |
| Weight | 4.50 kg/m |
| Mass of Inertia | lx: 152.61 cm4 ly: 36.17 cm4 |
| Section Modulus | zx: 14.47 cm3 zy: 30.52 cm3 |
| T-slot height | 12.3 mm |
| Section size | 50 mm × 100 mm |
| Hole | φ10.2 mm |
| Thickness of diagonal bar | 1.9 mm |
| Wall Thickness | 1.9 mm |
S10-50100 profile’s slot is 10.2 mm; heavy-duty profile where high strength is a must, a wide range of connecting and other parts is available for the slot 10 aluminium profiles and large section size and extraordinarily flexible. M10 screw or bolt and nut are optional to connect with other profiles. 50 series T-slot aluminium extrusion profiles can freely connect with each other.
Who us?
Jiangyin Wangfa is the professional manufacturer and supplier for solar frames and other industrial aluminum profiles. Company has introduced domestic and foreign automatic production equipment and advanced quality testing equipment to ensure the high quality of product.There are seven extrusion lines with the capacity of 10000 tons and 800 tons, three sand blasting lines,one anodized production line and other auxiliary production line such as the film packing and stamping.
