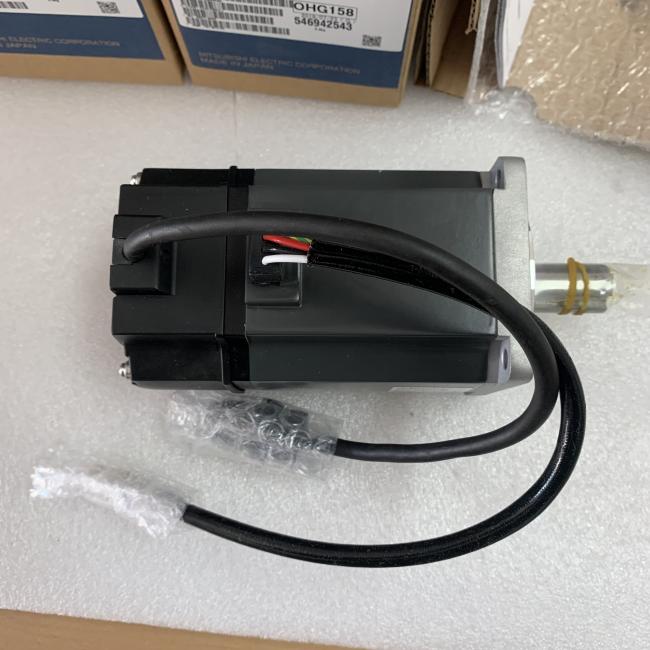

Mitsubishi HC-MFS73K AC Servo Motor 3 PHASE 750W 117V 3000RPM 5.2A NEW

MITSUBISHI HC-MFS73K Product information and technical parameters:
Brand: MITSUBISHI
Name: Ultra low inertia small power motor
Model: HC-MFS73K
Motor series: ultra low inertia, low power.
Rated output power: 0.75kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft keyway: (open slot).


Protection level: IP55 does not include the shaft part and the connector.
Features: ultra low inertia is suitable for high frequency operation.
Application examples: the insertion device, the assembly machine.

Drive: MR-H_ACN series built-in positioning function.
Rated output: 0.2KW.
In servo drive speed closed loop,
Rotor speed measurement accuracy is very important to improve the dynamic and static characteristics of the speed control loop.
In order to seek the balance between measurement precision and system cost, incremental photoelectric encoder is generally used as the speed measuring sensor,


The corresponding method is M/T velocity measurement MITSUBISHI HC-MFS73K
Although the M/T measurement method has a certain measurement accuracy and a wide range of measurement,
But this method has its inherent defects,
Mainly includes: the measurement period must be detected at least one complete encoder pulse, limiting the minimum detectable speed MITSUBISHI HC-MFS73K.
2 control system for speed control of the timer switch is difficult to maintain synchronization,
Can not guarantee the accuracy of measurement in the situation where the speed change is larger.


Therefore, it is difficult to improve the speed tracking and control performance of servo drive by using the traditional speed loop design method. MITSUBISHI general purpose AC servo amplifier MR-J2 series MITSUBISHI HC-MFS73K.
Rated output: 0.2kw.
Interface: general purpose interface.
Voltage: single phase AC100V.
MITSUBISHI servo system in the MITSUBISHI servo amplifier is widely used,


It can not only be used in the high precision position control and speed control of the working machinery and general industrial machinery,
Can also be used in the field of speed control and tension control.

By installing a personal computer with a servo setting software, the parameters setting, trial run, state display, and gain adjustment are performed.
MITSUBISHI servo system MR-J2S column is developed on the basis of the servo MR-J2 series with a higher performance and more features of the MITSUBISHI servo system,
The control modes are position control, speed control and torque control, as well as the switching control mode aamong them HC-MFS73K HC-MFS73K. The length of the line: 20m.
IP level: IP67.
Bending life: high bending life.
Encoder cable for HF-KP/HF-MP/HF-SP/HF-JP/HC-LP/HC-UP series.
