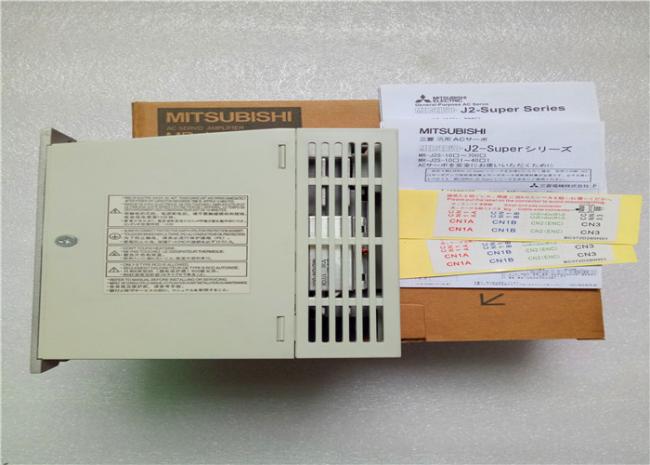

600W 50/60HZ Industrial Servo Drives Japan Mitsubishi MR-J2S-60B
MR-J2S-60B Mitsubishi Industrial AC Servo Drive 600W 50/60HZ NEW& ORIGINAL
Quick Details:
-
MITSUBISHI
-
MR-J2S-60B
-
MRJ2S60B
-
DISCONTINUED BY MANUFACTURER
-
SERVO AMPLIFIER
-
3.2AMP
-
3PH
-
200-230VAC
-
50/60HZ
-
600W SERVO AMPLIFIER
-
One Year Warranty
Specifications
|
Viyork Stock No30923 |
Brand/ManufacturerMitsubishi |
Manufacturer Part NumberMR-J2S-60B |
|
Product typeServo Amplifier |
Phase3 |
Control functionServo Control |
|
Supply voltage200 V ac |
Current rating60 A |
Width70 mm |
|
Depth205 mm |
Height168 mm |
Minimum operating temperature0 °C |
|
Maximum operating temperature55 °C |
Power rating50 W |
Datasheet |
Description:
-
Power Supply (Voltage/frequency): 3-phase 200-230VAC, 50/60Hz; 1-phase 230VAC, 50/60Hz
-
Power Supply (Permissible voltage fluctuation): 3-phase 200-230VAC, 170-253VAC
-
Power Supply (Permissible frequency fluctuation): ±5%
-
Control System: Sinusoidal PWM control/current control system
-
Dynamic brake: Built-in
-
Speed frequency response: 550 Hz or more
-
Protective functions: Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection,overspeed protection, excess error protection
-
Maximum input pulse frequency (Position control mode): 500 kpps- when using differential receiver, 200 kpps- when using open collector
-
Positioning feedback pulse (Position control mode): Resolution per encoder/servo motor rotation (131072 pulse/revolution)
-
Positioning complete width setting (Position control mode): 0 - ±10VDC
-
Excess error (Position control mode): ±10 rotations
-
Torque limit input (Position control mode): Set by parameters or external analog input (0-±10VDC / maximum torque)
-
Speed control range (Speed control mode): Analog speed command 1:2000, internal speed command 1:5000
-
Analog speed command input (Speed control mode): 0-±10VDC / rated speed
-
Speed fluctuation rate (Speed control mode): ±0.01% max.(load fluctuation 0-100%), 0% (power fluctuation ±10%), ±0.2% max. (ambient temperature 25°C ± 10°C), when using external analog speed command
-
Torque limit (Speed control mode): Set by parameters or external analog input (0-±10VDC / maximum torque)
-
Torque command input (Torque control specifications): 0-±8VDC / maximum torque (input impedance 10 to 12kΩ)
-
Speed limit (Torque control specifications): Set by parameters or external analog input (0-±10VDC, rated speed)
-
Structure: Self-cooling, open (IP00)
-
Shipping Weight: 2.6 kg
