Modicon Quantum automation platform

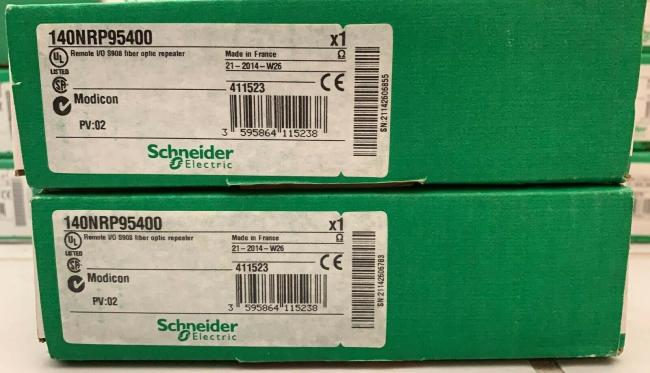

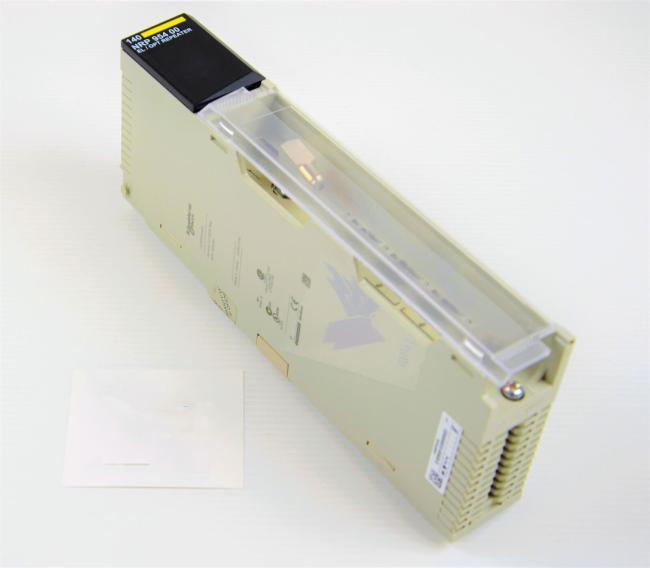

Fibre optic repeater

Multi mode

700 mA

5 W

1 A 5 V DC

2 fiber optic ST
1 coaxial connector

1 LED green RDY module status
1 LED red ERR internal fault, module failure
1 LED green coaxial communication status
2 LEDs green optical communication status
1 LED red FAULT error
1 LED red activity detected

0.000032284 in (820 nm)

6561.68 ft (2000 m) 50/125 µm)3.5 dBm
9842.52 ft (3000 m) 62.5/125 µm)3.5 dBm
9842.52 ft (3000 m) 100/140 µm)5 dBm

-20…-13 dB 50/125 µm)
-16…-10 dB 62.5/125 µm)
-10.5…-4 dB 100/140 µm)

20 ns

- 30 dBm

20 dB

-36 dBm

CE

PC (polycarbonate)

AWG 14...AWG 1

1.59 in (40.34 mm)

9.84 in (250 mm)

4.09 in (103.85 mm)

1.22 lb(US) (0.554 kg)

32…140 °F (0…60 °C)

-40…185 °F (-40…85 °C)

0…95 %

0...6561.68 ft (0...2000 m)

CSA C22.2 No 142
UL 508
FM Class 1 Division 2

TÜV

18155 - QUANTUM I/O & POWER SUPPLIES

PC21

00785901358206

0.59 kg (1.31 lb(US))

Yes

FR

Green Premium product

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

China RoHS declaration

Product Environmental Profile

End of Life Information

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
