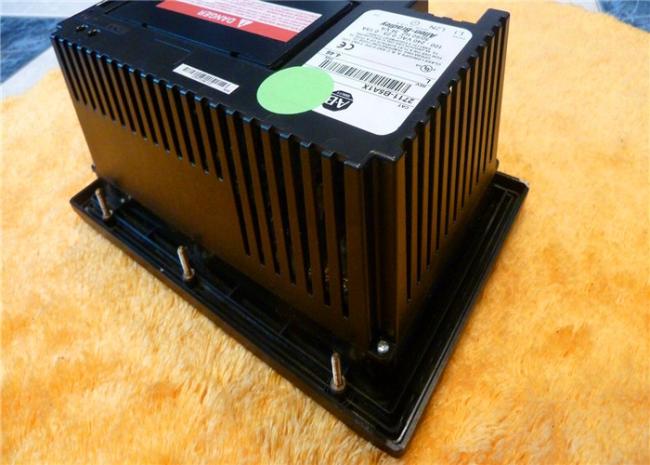

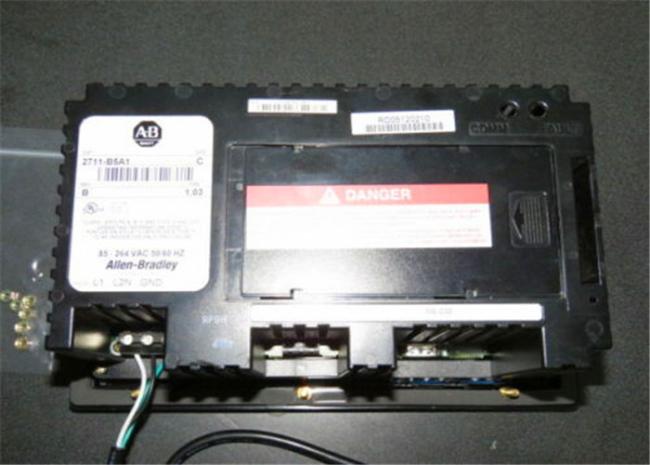

Allen Bradley 2711-B5A1L1 Ser H FRN 4.41 PanelView 550 Keypad Touchscreen HMI

Quick Detials

• ALLEN BRADLEY

• 2711-B5A1L1

• 2711B5A1L1

• OPERATOR INTERFACE W/RIO COMM& RS-232 PRINTER PORT

• PANELVIEW 550 MONOCHROME TERMINAL 5.5-INCH

• REMOTE I/O COMMUNICATION & RS-232 PRINTER PORT

• KEYPAD & TOUCHSCREEN

• DC POWER

• one year warranty

Description:

The 2711-B5A1L1 is part of the Panelview 550 series. It has a 5.5 inch Monochrome display, Keypad and Touchscreen user input, 24 VDC input power, and has Remote I/O Communication and RS-232 Printer Port.

About 2711-B5A1L1

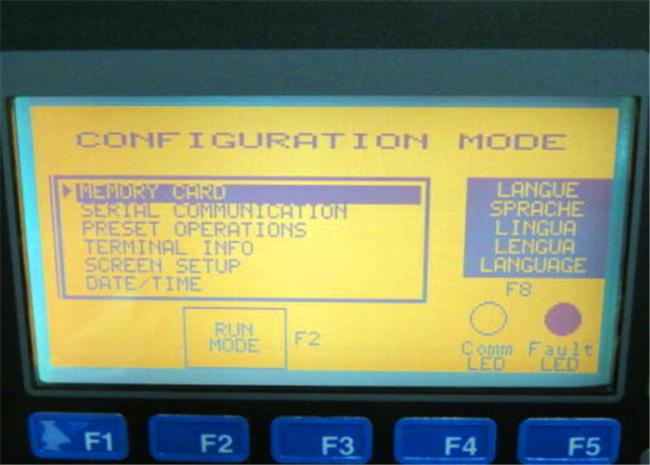

The obsolete Allen-Bradley 2711-B5A1L1 Panelview 550 is an HMI or Human-Machine Interface terminal that allows the user to interface with other machines. This Panelview HMI creates its interface with its 5.5 in. monochrome blue mode LCD screen which the users can cover with an antiglare shield for protection and better visibility. The monochrome LCD shows data in high-performance blue pixel graphics.

The 2711-B5A1L1 HMI terminal can connect to any other machines that use the Panelbuilder 32 software. The terminal makes its connections with its Remote I/O Communication Port or with its RS-232 Printer Port and a 2711-NC13 communication cable or cables. The user is able to control the 2711-B5A1L1 unit and the machine it is interfacing with by using the 2711-B5A1L1’s keypad and its touchscreen to enter information, commands, and data. This unit is a DC terminal and it is powered by 24V DC power. The 2711-B5A1L1 HMI terminal has an internal memory capacity of 170 KB of application runtime memory. This unit is illuminated by a halogen lamp which will last for a long time and is replaceable if necessary. The internal halogen backlight’s replacement part number is 2711-NL1. The approximate shipping weight of the 2711-B5A1L1 is 6 lbs while the approximate shipping dimensions are 14 x 11 x 8 inches. The most common Series that the 2711-B5A1L1 HMI terminal comes in are Series A, B, C, D, E, F, G, and H, while the most common firmware that it uses are firmware versions 1.00-4.48. The 2711-B5A1L1 is CE-marked and UL certified.

Technical specifications:
