5.5 Inches Touch Screen Hmi Panels Allen Bradley 2711-K5A2 2711-K5A2L1 with Keypad DH485

Allen Bradley 2711-K5A2 /2711-K5A2L1 HMI Touch Screen H PanelView 550 Monochrome/Keypad/DH485 AC Power

Quick Detials

• ALLEN BRADLEY

• 2711-K5A2

• 2711K5A2

• DISCONTINUED BY MANUFACTURER

• OPERATOR INTERFACE

• PANELVIEW 550

• MONOCHROME TERMINAL

• 5.5-INCH

• KEYPAD

• DH-485 COMMUNICATION

• NONVOLATILE/RAM MEMORY: 240 KB / 170 KB

• 120/240 VAC INPUT

• 50/60 HZ

• one year warranty

Description:

The 2711-K5A2 is part of the Panelview 550 series. It has a 5.5-inch Monochrome display, Keypad(F1-F10) user input, 100 to 240 Volts AC 50 to 60 Hertz input power, and has DH-485 Communication Ports.

About 2711-K5A2

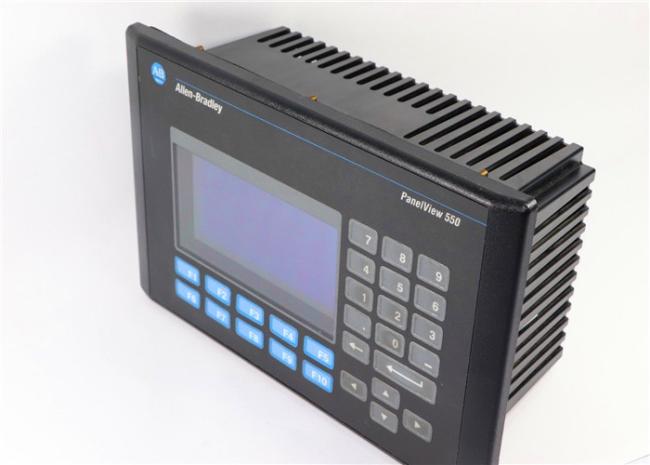

The 2711-K5A2 is an Allen-Bradley PanelView 550 terminal. The obsolete Allen-Bradley PanelView 550 2711-K5A2 is an operator terminal that allows the user to interface with other machines. This PanelView device has a 5.5 in. monochrome LCD blue mode screen. The 2711-K5A2 allows the user to connect to other devices by using the PanelBuilder 32 software and the DH-485 communication port with 1 or more 1747-C10 communication cables. The user is able to control the unit by using the 10-key keypad (with function keys labeled from F1 to F10) to input information and commands.

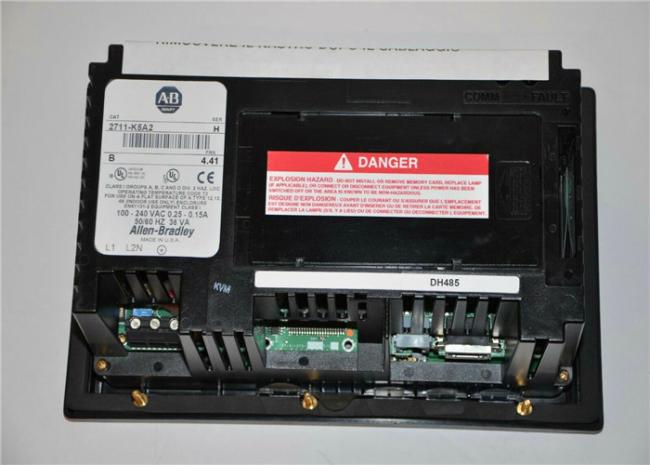

The Allen-Bradley 2711-K5A2’s features include a nameplate label for displaying product information, a green COMM indicator light to show when the terminal is communicating, a red FAULT indicator light that shows if something is wrong with the terminal’s hardware or firmware, and an access cover that gives users access to the replaceable backlight. Its DH-485 communication port can connect to SLC and MicroLogix controllers, a DH-485 network, or to a Wallmount Power Supply. The 2711-K5A2 terminal is powered using 120 Volts of AC power. This unit has the following internal memory: 170 KB of application runtime memory and 240 KB of nonvolatile memory. This unit has an internal backlight replacement part number of 2711-NL1. The approximate shipping weight and dimensions of the terminal are 6 pounds and 14 x 11 x 8 inches, respectively. The most common series that the 2711-K5A2 comes in includes Series A, B, C, D, E, F, G, and H and the most common firmware that it uses includes versions 1.00 to 4.48.

Technical specifications:
