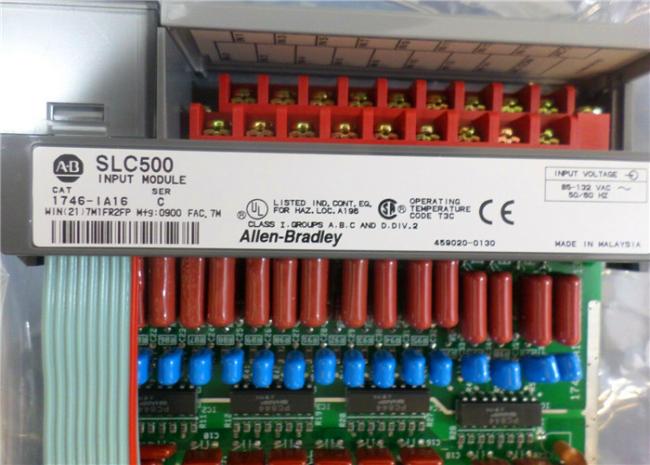

Allen Bradley 1746 - IA16 Input Module SLC 500 Ser C BUL 1746 85-132 VAC

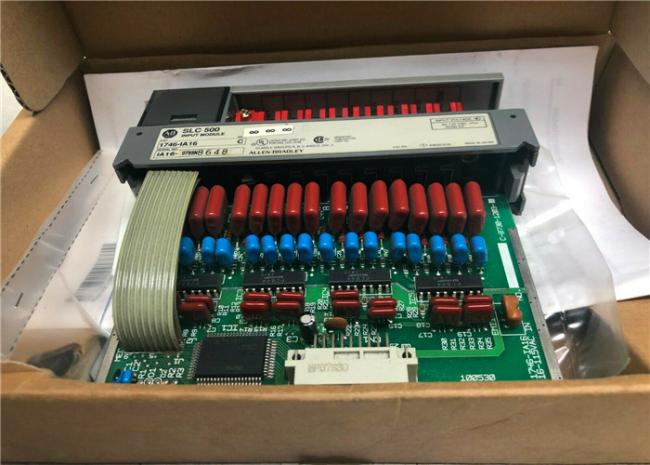

New Allen Bradley 1746-IA16 input module SLC 500 ser C BUL 1746 85-132 VAC
Quick Detials
- ALLEN BRADLEY
- 1746-IA16
- 1746IA16
- INPUT MODULE
- 16 POINT
- DIGITAL
- SLC500
- 85-132 VAC
- 47-63 HZ
-
one year warranty
Specifications:
The 1746-IA16 is a SLC 500 Digital AC Input Module. This Digital AC Input Module has a Voltage Range of 85-132 Volts AC and 16 Inputs with a Backplane Current (5 Volts DC) of 85 milliamps.
About 1746-IA16
The 1746-IA16 is a logic controller module that is configurable and programmable. It has a 0 - 60 C operating temperature and it has standard features. It weighs 0.34 kg and has 5" x 2" x 6" (13 cm x 5 cm x 15 cm) dimension. The controller module has 0.27 watts per point with min to 0.425 Watts and a total of 4.8 Watts. The module has a 100 - 120V AC input signal voltage category with 16 points per common and 16 inputs. The 1746-IA16 is a general-purpose input application. The mounting is a chassis-type and has 16 channels. The operating voltage ranges from 85 - 132V AC input signal. It has a 16-channel digital AC input module for a programmable controller. The operating voltage is 85 - 132V AC at 47 - 63 Hz operating frequency. The back-plane current consumption at 5V DC is 0.085 mA and it is 0.0 A at 24V DC.
The signal for the ON-delay is at its max at 35 ms and the signal for the OFF-delay is at max at 45 ms. While the maximum OFF-state voltage reaches 30V AC and OFF state current of 2 mA. The input current at 120V AC is 12 mA nominal. The 1746-IA16 has an inrush current time duration at maximum to 500 microseconds and 0.8 mA maximum inrush current.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-IA16 |
| Series | SLC 500 |
| Module Type | Digital AC Input Module |
| Voltage Range | 85-132 Volts AC |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 35 or 45 milliseconds |
| Off State Current | 2 milliamps |
| Slots | 1 |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
