Skip Hopper Type Concrete Batching Station JS1000 Auto Concrete Mixer Plant one cubic plant
Skip Hopper Type Concrete Batching Station JS1000 Auto Concrete Mixer Plant one cubic plant
The js1000 auto concrete mixer plant mainly includes concrete mixer machine, material weighing system, material handling systems, material storage system and control system ect five major systems and other ancillary facilities.
Because of its mechanization and high degree automation,so the productivity is very high, and to ensure the quality of concrete and save the cement, commonly used in large projects and long duration concrete cement/aggregate usage for the large and medium-sized water conservancy, electricity, bridges and other industrial and civil building engineering. It could be used to mix the hard concrete, plastic concrete, liquidity concrete, light weight aggregate concrete and various kinds of mortars, and it is an efficient type of machine with very extensive application.
Advantage of JS1000 cibcrete mixer plant
1. The concrete batching plant overall uses the integrated steel casting, high-quality H-beam, not only easy to install, but also enhance the overall structural strength of concrete mixing station, and, it can be applied to a variety of complex terrain structure;
2. The concrete batching plant has good stirring performance, the device uses helical twin-shaft compulsory mixing console, the main mixer is high efficient, these dry concrete, plastic concrete and various proportions of concrete can achieve good stirring effect;
3. The concrete batching plant not only has excellent main mixing machine, but also have a variety of advanced accessories, such as screw conveyor, metering sensors, pneumatic components, these components ensure that the concrete mix station with high reliability, precise weight measurement and long life during its operation;
4. At the same time, concrete batching plant are provided the respective maintenance or inspection ladder, and has monitoring system, easy to equipment maintenance;
5. The concrete batching plant has a good environmental performance, during the operation, powder and ash can be fully enclosed in a sealed container, using the dust collector / mist spray and other methods to greatly reduce the dust pollution of the environment.
| Items | Configuration | Model/Specifications | Quantity |
|

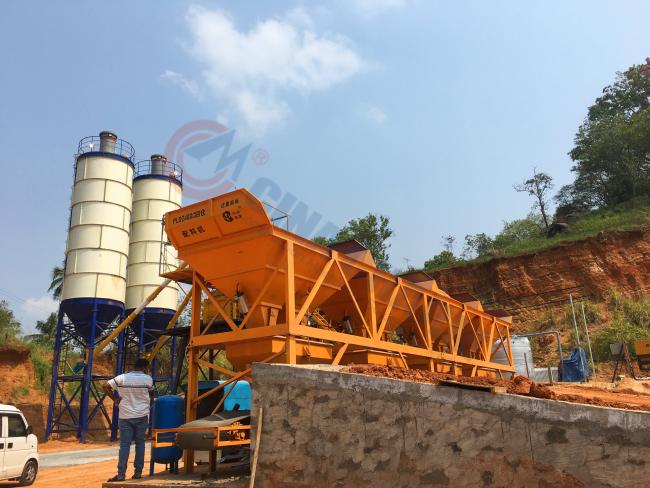

1. Batching System PLD1600 |
Aggregate Storage Bin | 3x8.3m3 | 1 |
| Weighting hopper | 1.6 m3 | 1 | |
| Motor | 4kw | 4 | |
| Weighting sensor | 1000kg | 3 | |
| 2. Main Mixer | JS1000A Steel Structure | 1 | |
| Reducer | XWD8-23-18.5 | 2 | |
| Electric Motor | 18.5KW | 2 | |
| Discharge System | 1 | ||
| Lubricating System | 1 | ||
| Main Seal Components at Axle End | 1 | ||
|
3. Aggregate Lift Hopper |
Hoisting Mechanism | 15kw | 1 |
| Lift Hopper | 1 | ||
| Rail Rack | 1 | ||
| 4. Water Weighing System | Water Weighing Tank | 1 | |
| Water Weighter | 200kg | 3 | |
| Butterfly Valve | Φ100mm | 1 | |
| Water Pump | 3kw | 1 | |
| Pipeline | Soft steel pipe | 1 | |
| 5. Cement Weighing System | Measuring Bin | 0.672m³ | 1 |
| Weighing Sensor | 300kg | 3 | |
| Butterfly Valve | Φ200mm | 1 | |
| Vibrator | 1 | ||
| 6. Fly Ash Measuring System | Measuring Bin | 0.338m³ | 1 |
| Weighing Sensor | 200kg | 3 | |
| Butterfly Valve | Φ200mm | 1 | |
| Vibrator | 1 |
