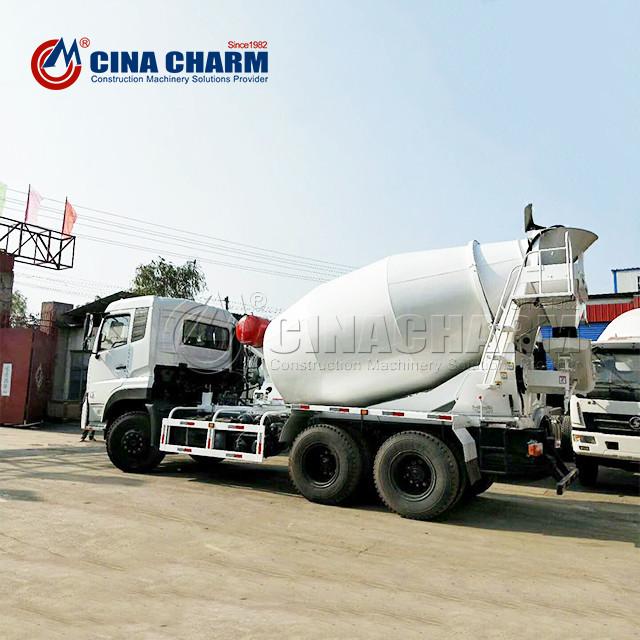

Self Loading Concrete Mixer Truck , 8cbm Long Life Truck Mounted Cement Mixer

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 5 days
Brand: CINACHARM
Product Description

High Quality 8cbm Concrete Mixer Truck brand new cement mixer truck 8m3 concrete mixer truck/cement mixer for truck

1. Concrete mixer truck is a special truck used to transport construction concrete. Because of its shape, it is also known as the snail car.

2. These trucks are equipped with cylindrical agitating cylinders to carry mixed concrete. During the transportation process, the mixing drum will always be kept to rotate to ensure that the concrete carrying is not solidified.



Overall parameter
Overall dimension 7700x2450x3750mm
Curb weight 11815kg
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q235
Drum body thickness:5mm, End cover thickness:6mm
Agitating capacity 8M3
Drum overall dimension(with frame) 6600*2500*2675mm
Mixing drum size Diameter: Φ2300mm Length: 4730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Drum inclination 16°
Water supply Basic water supply system
Radiator 18L
Reduction gear Rongjiao3301
Hydraulic pump SUNNY
Hydraulic motor SUNNY
Accessory Tool box
Chassis parameter
Chassis Brand Dongfeng
Chassis model EQ1140GLVJ
Axle base 4100mm
Driving type Left hand drive(LHD)
Engine model WD615.87
Rated power (HP) 190HP
Emission standard Euro III
Fuel type Diesel
Transmission(Gear box) Faster eight
Front axle Drum type
Rear axle HC16 Driving axle
Tyre 10.00R20*6
Cab type DF 76(with air-conditioner)



Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck.

1: Cylindrical mixing drums are installed on these trucks to carry mixed concrete.

2: In the course of transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.

3: After the concrete is transported, the inner part of the mixing drum is usually washed with water to prevent the hardening of concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.



Advantages of our concrete mixer truck

1. The truck is beautiful and graceful, and smooth operation.

2. Hydraulic components selected national key enterprises of quality products, reasonable mechanical parts, and simple operation, stable and reliable performance.

3. The truck can be kept rotating, to avoid the occurrence of cement slurry dispersion, precipitation and other undesirable phenomena.

4. The machine does not need to rely on external power, the gravity and structure of the optimal design.
