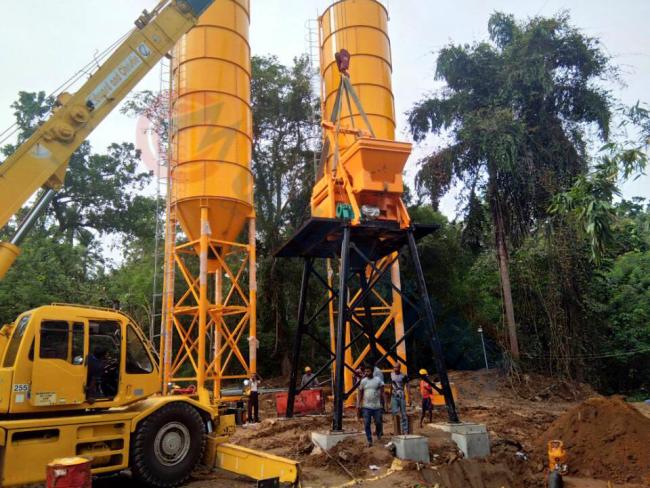

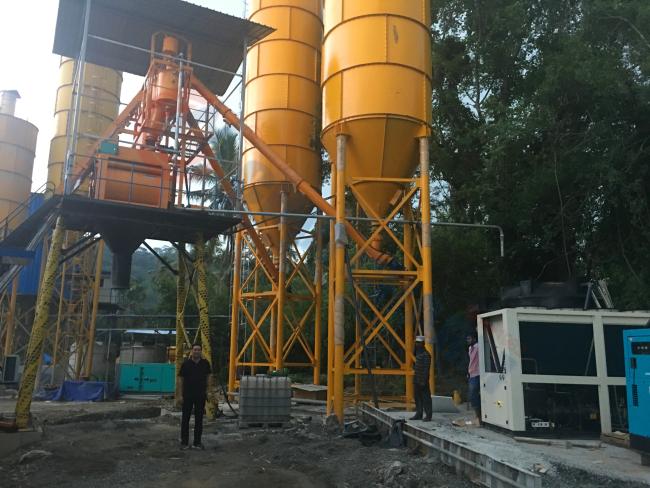

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. HZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the idea plant to for the production of commercial concrete.

Zhengzhou Changli group——CINACHARM JS series double horizontal shaft compulsory concrete mixer is a multi-function mixer. It can mix stiff concrete, plastic concrete, light aggregate concrete and all kinds of mortar, with features of compact structure, stable working, uniform mixing, easy operation and short cycle time.
It can be used independently or combined with PLD batching machine into concrete batching plant.


The materials feeding to concrete mixer can be skip hopper, belt conveyor and screw conveyor.
Usually, for small mixing capacity ≤60 cubic meter per hour, the aggregate feeding is by skip hopper. If big, belt conveyor will be used. Screw conveyor is usually to deliver cement and coal ash, but it also can deliver aggregate for small gravels.


PLD series concrete batching machine adopts electronic weighing, computer control, digital display, which can automatically finish the batching procedure of 3-6 kinds of aggregates, such as sand, stone or cement. It has features of accurate weight, auto compensation, fast speed and easy operation.
Hopper cumulative weighing, belt cumulative weighing and separate weighing are available.

Including weight of aggregates, cement, fly ash, water and additive. Cement and fly ash are delivered to the feeding hopper by screw conveyors, while water and additive are by pumps. There are high precision load cells with error ±1% to weigh the material.
Weighing of aggregates is made by the load cells on concrete batching machine. Cumulative weighing and separate weighing are available.

Zhengzhou Changli group——CINACHARM can automatically, semi-automatically or manually control the production process with high reliability and stability, including the batching, feeding, mixing, discharging and the weighing. It also can dynamically show the process of weighing and discharging. The operation is clear and easy.
