Automatic Type Concrete Batching Plant HZS75 enviromental concrete mixer plant skip hoist mixing plant
Automatic Type Concrete Batching Plant HZS75 enviromental concrete mixer plant skip hoist mixing plant

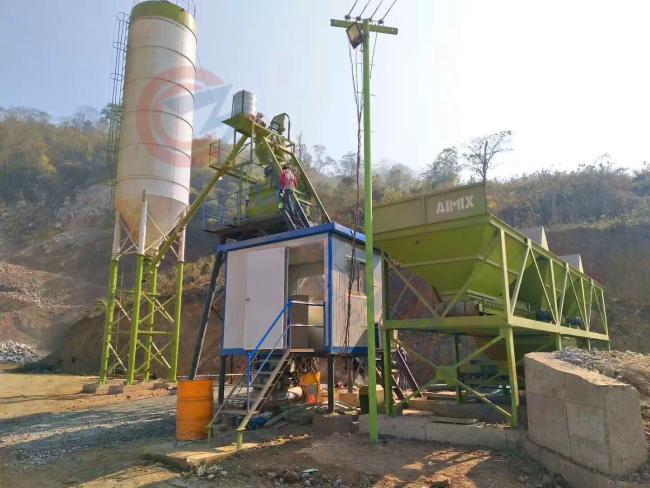

Stationary HZS75 mixing equipment:
1.Excellent mixing performance
2.Auto operation by PLC
3.Durable
4.perfect after service
Stationary Cement mixing equipment adopting twin-shaft compulsory mixer, it can mix evenly and efficiency. Driven by IPC, the operation is easy and highly automatic, which qualifies it for large-scale infrastructure projects in the construction of roads, bridges, dams, airports and ports
- batcher: with 3(4) aggregate bins and adopt accumulative weighing system.
- conveyor: adopting the Guard belt, it can distribute the material fast and stability, and it with cleaning device.
- mixer: adopting twin-shaft compulsory mixer, it can mix evenly and fast, the ability is strong.
- control system: controlled by computer with whole auto-operate, with the 15 years experience, the controlling procedure is designed perfectly. and the system needn't professional to operate. the people who get simple training can operate.
- mixing Plant is operated in high voltage power. (Three-phase alternate current.380V/50HZ)
The main technical parameter as follows:
| Models | HZS50 | HZS75 | HZS100 | HZS150 | ||
| Production(m3/h) | 50 | 75 | 100 | 150 | ||
| Mixer | Models | JS1000/MSO1500 | JS1500/MSO2250 | JS2000/MAO3000 | JS3000/MAO4500 | |
| Mixing Power(kw) | 2×22 | 2×30 | 2×37 | 2×55 | ||
| Output(m3) | 1 | 1.5 | 2 | 3 | ||
| Aggregate Size(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ||
| Hopper | Hopper Capacity(m3) | 13 | 15 | 20 | 30 | |
| Hopper Quantity | 3 | 3 | 3 | 4 | ||
| Conveyor Capability | 200 | 300 | 400 | 600 | ||
| Scope and Precision of Weighing | Aggregate(kg) | 2500±2% | 3500±2% | 4500±2% | 7000±2% | |
| Cement(kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | ||
| Fly ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | ||
| Water(kg) | 300±1% | 500±1% | 600±1% | 800±1% | ||
| Admixture(kg) | 30±1% | 30±1% | 50±1% | 50±1% | ||
| Total Power(kw) | 92 | 108 | 118 | 172 | ||
| Height of Discharge(m) | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ||
Q: How is the quality of your products?
A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis
Q: Service and Payment Terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
