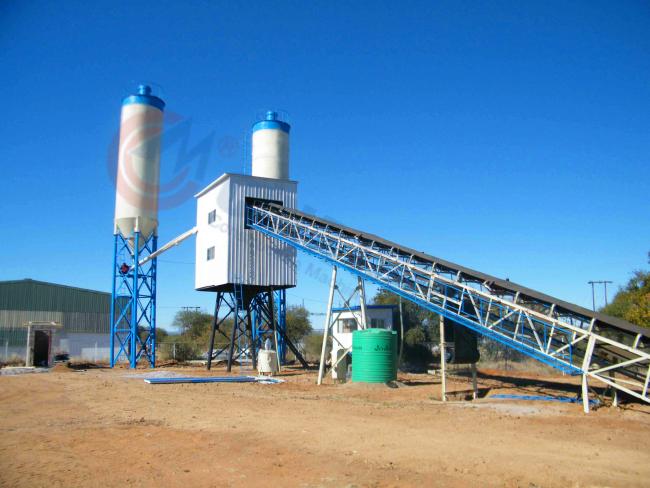

60m3/h Belt Conveyor Type Concrete Batching Plant ready mixed concrete batching plant mobile concrete mixing plant
60m3/h Belt Conveyor Type Concrete Batching Plant ready mixed concrete batching plant mobile concrete mixing plant
2. Production capacity guaranteed;
3. Easy to do maintenance, low cost and long life;
4. CTS series twin-shaft compulsory mixer, wear-resistant and perfect sealing, guarantee 160000 batches mixing;
5. Modular design, can be installed fast and less welding on site;
6. Impulse dust filter collect the dust and reuse it;
7. Double computer synchronized control, no-stop production;
8. Easy to save and print the report for customer or financial analysis.
60m3/h Belt Conveyor Type Concrete Batching Plant Hzs60 With Low Price For Sale
is applicable for large/medium-scale construction projects, such as high-speed railway, hydropower construction, airport, highway, bridge, etc, and production of high-quality concrete.
| Model | HZS60 |
| Rated Productivity | 60m3/h |
| Main Mixer | JS1000 |
| Max. Aggregate Diameter | 80mm |
| Capacity of Aggregate Bin | 4×8.38m3 |
| Aggregate Conveying Mode | Flat Belt Conveyor |
| Aggregate Weighing Precision | 4X 3000Kg ±2% |
| Cement Weighing Precision | 1500Kg ±1% |
| Fly Ash Weighing Precision | 600Kg ±1% |
| Water Weighing Precision | 600Kg ±1% |
| Additive Weighing Precision | 50Kg ±1% |
| General Power | 120Kw |
| Total Weight | 48T |
| Outline dimension (L*W*H) | 33.8m×14.8m×10.8m |
| Discharging Height | 4.1 m |
Q: How about the quality of your products?
A: We are factory with more than 30 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide concrete batching plant flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various concrete batching plants. We can design the concrete batching plant based on crustomers' particular requirements.
