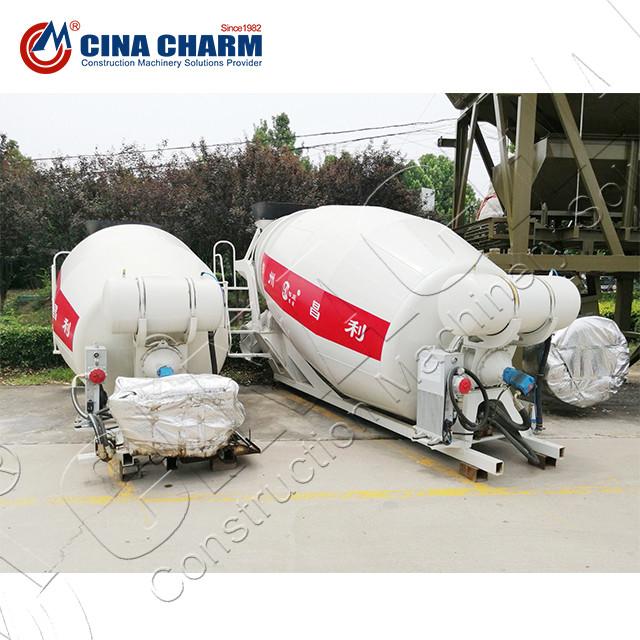

High Precision Cement Truck Drum , 8CBM Capacity Diesel Concrete Mixer Drum
Diesel concrete mixer drum for concrete mixer truck 8CBM concrete mixer drum concrete drum mixer
As the largest manufacturer of semi-trailer 37 years of production experience, through the Asian production technology is mature, advanced production equipment.
| Name of Commodity | 8m3 concrete mixer drum(Only drum) |
| Effective volume (m3) | 8m3 |
| Geometric volume (m3) | 11.8m3 |
| Cylinder inclination (°) | 15° |
| Feeding speed (m3/min) | ≧3 |
| Discharge speed (m3/min) | ≧2 |
| Discharge residual rate (%) | ≤0.5％ |
| Tank material | Q345B |
| Tank thickness (mm) | 5 |
| Dimensions (mm) | 5296*2200*2532 |
| Tank diameter (mm) | 2200 |
| Weight (KG) | 3400 |
| Water supply system | Air pressure water supply |
| Reducer | China Famous Brand |
| heat sink | China Famous Brand |
| Hydraulic motor | US SUNNY |
| Hydraulic pump | US SUNNY |
Usage:
1. A concrete mixer (concrete mixer truck) used for transporting concrete building dedicated truck, concrete from the concrete mixing station rushed to the construction site received. Such trucks are cylindrical mixing drum unit for the carriage of mixed concrete. During transport will always be kept rotating mixing drum in order to ensure that the carriage of the concrete not be solidified.
2. part From the vehicle chassis, the mixing tube, transmission, water supply device and other components. Hydraulic pumps, reducer and motor are used in imported parts, customers can choose their own good performance domestic parts.
Maintenance
Since concrete solidified into lumps in a short time, and the steel and paint has some corrosion, so the concrete tank after each use, wash and adhere to the concrete tank on the material inlet and outlet of the concrete is a daily maintenance must work seriously. Including:
a. Rinse with water before each filling inlet, so that when the inlet kept moist during charging;
b. At the same time charging comes to vehicle wash water tank filled with water;
c. After loading washing Inlet, near the mouth of the feed residue washed concrete;
d. To the site after unloading, rinse out the chute, and then added to the concrete tank cleaning water within 30-40 L; return the vehicle to keep the concrete tank forward slow rotation;
e. Remember to let go before the next charging within the concrete tank sewage;
f. Each day when the concrete tank and thoroughly clean out material around the mouth, to ensure non-stick cake with cement and concrete.
These work for as long as one is not careful, it will give the future work of great trouble
Usages of Concrete Mixer Drum
Ready mix concrete trucks are used by construction workers to carefully place large amounts of cement.
New models of various concrete mixer trucks are released every year, but the overall function of the vehicles is the same.
In addition to transporting and pouring concrete, these trucks also mix the cement along the way.
