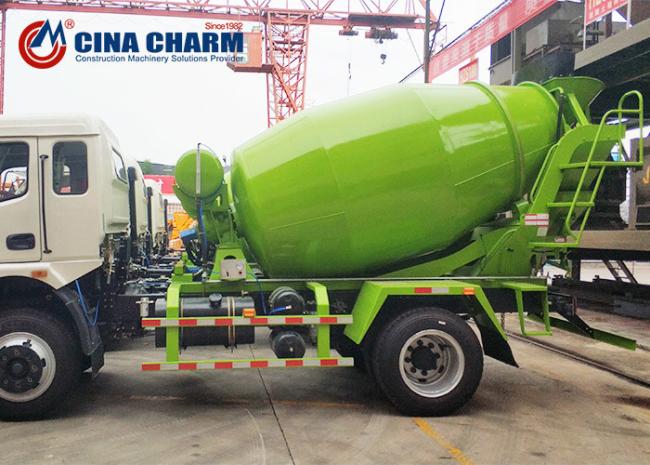

Fast Climbing 4m3 Concrete Mixer Truck , Concrete Mixing Transport Trucks
4m3 concrete mixer truck mix concrete truck mobile concrete mixer truck concrete mixing transport trucks
1. Small 8-speed gearbox, large torque, fast climbing, international quality, high quality, light weight
2. Equipped with high-strength rear axle, strong bearing capacity, free of disassembly and maintenance, saving labor and saving money
3. Classic room, good sound insulation, overall stronger and safer! Luxury center console, luxury mobile home
Huakang series products is an economical light truck with the models 4x2 lorry, 4x2 dump truck, special vehicle equipped with iron Huakang series driving (TJG130). TGJ130 Huakang series models (dump truck, special vehicle) can be optional right-hand cab. Gross vehicle weight of 8-13 tons, mainly for urban and rural logistics transportation.
| Vehicle information list | ||||
| Item | CLGC-4 concrete mixer truck | |||
| Truck brand | ISUZU | |||
| Total mass | 14640 | Drum volume (m3) | 3.8 | |
| Rated weight(Kg) | 8460 | Vehicle size(mm) | 6350×2300×2650mm | |
| Curb weight(Kg) | 6180 | Cabin seat | 2 | |
| F/R hang(mm) | 1015/1320 | Steel spring NO | 8/6+5 | |
| A/D angle(°) | 24/25 | Dumping angle(o) | ≥45 | |
| Axles quantity | 2 | Wheelbase (mm) | 3815 | |
| Wheel loading(Kg) | 2500/4800 | Max speed(Km/h) | 100 | |
| Mixer drum | 3m3 | |||
| Chassis information list | ||||
| Chassis model | NKR77PLPACJAY | |||
| Tyre quantity | 6 | Tyre size | 7.50-16 | |
| Leaf spring quantity | 10/12+9 | Front track(mm) | 1504 | |
| Fuel tanker | Diesel | Rear track(mm) | 1425 | |
| Standard | Euro III | |||
| Engine model | 4KH1-TC,ISUZU | Displacement/power | 4114ml/130HP | |
| Feeding speed | M3/min≥ 3 | |||
| Unloading speed | M3/min≥ 2 | |||
| Discharge reside rate | %< 0.5 | |||
| Water supply model | Air pressure water supply | |||
Products advantages
Box-cage model
Cylinder using high strength and wear-resistant steel, box-cage mold overall shape, to ensure that the flange, the segment cylinder and raceway coaxiality and roundabout, to ensure smooth operation of the vehicle
Double helical blade
Double helical blade in the tank body, moderate density, the front taper at the gate ball symmetrical mixing plate, the tank mouth at the installation of dual-vane and the discharge guide vanes, the more uniform material, faster
Famous brand mixer pump, reducer and motor
Mixer Pump Eaton (USA Brand)
Motor Eaton (USA Brand)
Speed Reducer Bonfiglioli (Italy Brand)
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
