HZS50 Stationary Concrete Mixing Plant With 50m3/H Productivity
manufacture concrete mixing plant/HZS50 stationary concrete batching plant
All the structures of the concrete mixing station are modular structure. The installation on site is fast and convenient. At the same time, it can be flexibly arranged according to the terrain of the user. The main building is made of H-shaped steel. The structure is stable and reliable. The operation room has no contact with the main building and no vibration.
The hopper concrete mixing plant saves between one-half and two-thirds of the site area compared to the usual oblique belt conveyor. The operation is simple and convenient. The Chinese and English menus show that the status of each device is simulated and displayed with an audible and visual alarm. When working at the mixing station, after only a small number of buttons are operated, the entire work process is transferred to the computer control.
| Model | HZS50 |
| Rated Productivity | 50 m3/h |
| Mixer Capacity | 1m3 per batch |
| Main Mixer | JS1000 double shaft concrete mixer |
| Power of Main Mixer | 52KW |
| Max. Aggregate Diameter | 80mm |
| Feeding Mode | Lift Hopper |
| Batching Unit | PLD1200-3 bins |
The concrete mixing station is safe and reliable. The concrete performance is as follows: The mixing host is equipped with an emergency stop switch. When the emergency occurs, the whole set of equipment will stop working to ensure the safety of the personnel. The mixing main control door is equipped with sensors to open the access door or The maintenance door is not closed, and the mixing machine motor is in a short-circuit state and cannot work, thus ensuring the safety of the maintenance personnel.
The HZS concrete mixing plant is an automatic mixing function. The proposed mixing station consisting of a combination of a twin-shaft mixer and a batching machine can fully utilize the advantages of the batching machine and the mixer. The optional accessory configuration can be selected according to the needs to meet the requirements of most conventional railways such as railways, highways, airports and terminals.
The concrete mixing station is mainly divided into four parts: sand and gravel feeding, powder feeding, water and admixture feeding, conveying and storage. The equipment is casted by integral steel structure. The high-quality H-shaped steel not only looks beautiful and also strengthens. The overall structural strength of the concrete mixing station is easy to install and can be applied to a variety of complex terrain structures.

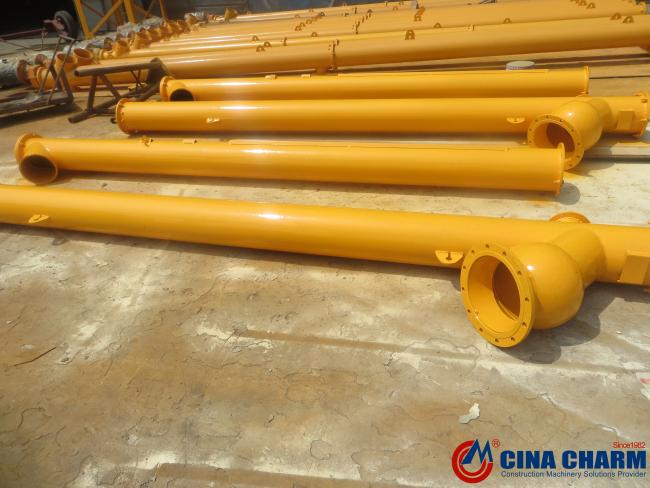

The concrete mixing station not only has an excellent mixing machine, but also has a variety of sophisticated accessories, such as screw conveyors, metering sensors, pneumatic components, etc. These components ensure the high reliability of the concrete mixing station during operation, accurate measurement skills and Extremely long service life. At the same time, each maintenance and repair part of the concrete mixing station is equipped with a walking platform or a check ladder, and has sufficient maneuvering space. The mixing host can be equipped with a high-pressure automatic cleaning system, and has a function of lack of oil and an over-temperature automatic alarm function, which is convenient for equipment maintenance.
