Electric Type Concrete Mixing Station , YHZS25 Mobile Batching Plant

Price Negotiable
Price: Negotiable
MOQ: one set
Delivery Time: 8-10 days
Brand: Cinacharm
Product Description

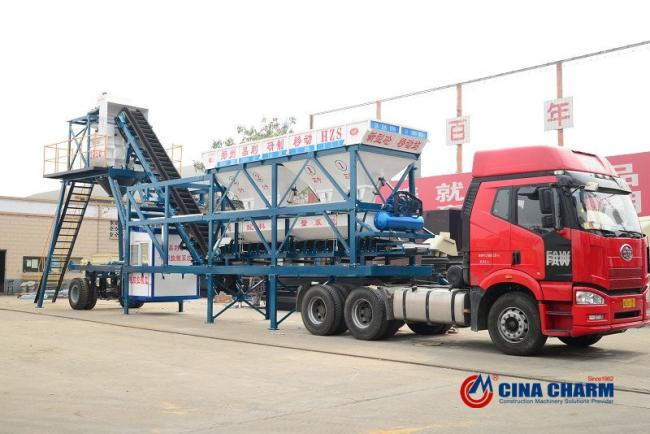

     Mobile concrete batching plant/Electric type YHZS25 concrete mixing plant



The mobile concrete mixing station is a concrete production equipment that integrates the material storage, weighing, conveying, stirring, unloading and automatic control system of the concrete mixing station with a trailer unit; it is all with the fixed automatic mixing station. The movement process, operation mode, maintenance and repair are exactly the same; at the same time, it has the unique characteristics of flexible movement, quick and easy disassembly and assembly, simple storage and management; it is the best matching machine in the construction of public railway, bridge, port, hydropower and other projects.





Model HZS25
Rated Productivity 25m3/h
Main Mixer JS500
Power of Main Mixer 18.5KW
Max. Aggregate Diameter 80mm
Delivery Capacity 0.5m3
Feeding Mode Lift Hopper
Batching Unit PLD800
Measuring Scope & Accuracy of Aggregate ±2%
Measuring Scope & Accuracy of Cement ±1%
Measuring Scope & Accuracy of Water ±1%
Discharging Height 3.8 m
Outline Dimension L X W X H) 14.5m X5.6m X5.9m(excluding silos)
General Power 55 KW
Total Weight 9700Kg
Control Mode Central Control System



Characteristics

1) The main machine works smoothly: the raw materials enter the mixer evenly for a relatively long period of time. There is no intermittent burst feeding process.

2) Low wear of wear parts: smooth and smooth without impact, while stirring is small.

3) Low energy consumption: the installed power is small, the amount of agitation is small, and a small amount of raw materials enters the mixer evenly and is easily mixed evenly.

4) Low cost of use and maintenance: less structural links, short belts and stable operation.




      The concrete mixing station not only has an excellent mixing machine, but also has a variety of sophisticated accessories, such as screw conveyors, metering sensors, pneumatic components, etc. These components ensure the high reliability of the concrete mixing station during operation, accurate measurement skills and Extremely long service life. At the same time, each maintenance and repair part of the concrete mixing station is equipped with a walking platform or a check ladder, and has sufficient control space. The mixing host can be equipped with a high-pressure automatic cleaning system, which has the functions of lack of oil and over-temperature automatic alarm function, which is convenient for equipment maintenance. In the design, the appearance and maintenance are more convenient. The structure is novel and the shape is beautiful and generous. It is a forced mixing station. It adopts modular structure, which is quick to install and disassemble and convenient to transport. With a variety of arrangements, it can adapt to the requirements of different venues. The operation is simple and convenient. The Chinese and English menus show that the status of each device is simulated and displayed with an audible and visual alarm. When working at the mixing station, after only a small number of buttons are operated, the entire work process is transferred to the computer control.
